Question: 1 . Determine the forces in bars 1 , 2 , and 3 of the plane Truss supported and loaded as shown in the figure.

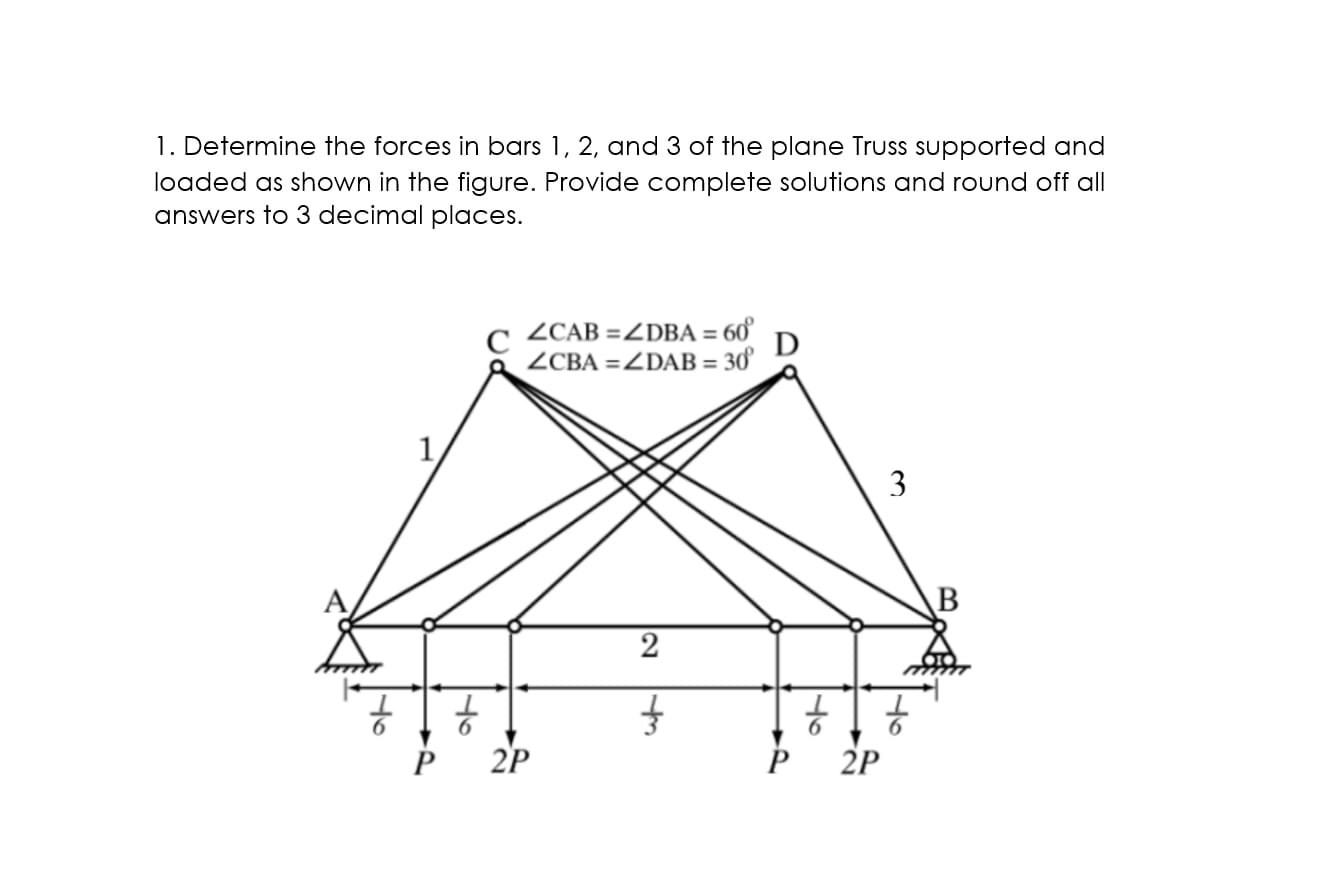

1. Determine the forces in bars 1,2, and 3 of the plane Truss supported and loaded as shown in the figure. Provide complete solutions and round off all answers to 3 decimal places.
1 . Determine the forces in bars 1 , 2 , and 3 of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
