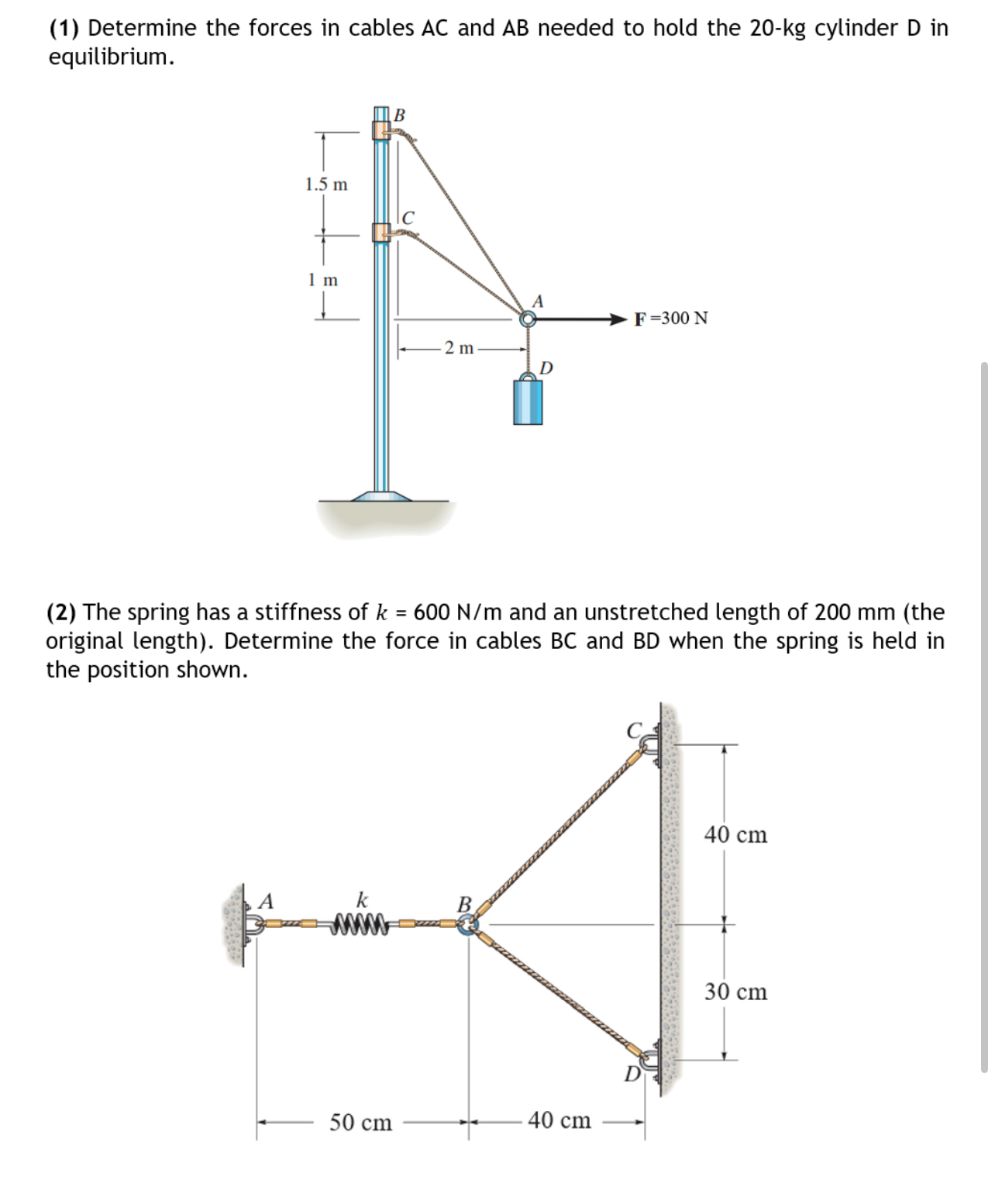

Question: ( 1 ) Determine the forces in cables A C and A B needed to hold the 2 0 - k g cylinder D in

(1) Determine the forces in cables AC and AB needed to hold the 20-kg cylinder D in
equilibrium.
(2) The spring has a stiffness of k=600Nm and an unstretched length of 200 mm (the
original length). Determine the force in cables BC and BD when the spring is held in
the position shown.
( 1 ) Determine the forces in cables A C and A B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
