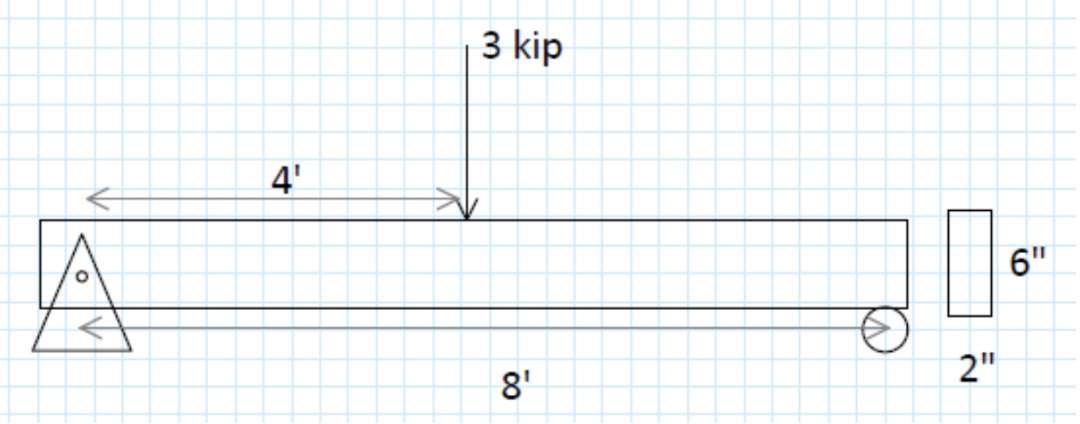

Question: 1 . Determine the maximum bending stress ( fb ) in this beam made from an A - 3 6 steel, in units of ksi.

1.Determine the maximum bending stress (fb) in this beam made from an A-36 steel, in units of ksi. (Enter the number with NO decimal places.)
2.Determine the location (from the left side) of the maximum bending stress in the beam made from an A-36 steel, in units of ft.(Enter the number with NO decimal places.)
3.Determine the maximum shear force (V) in this beam made from an A-36 steel, in units of kip. (Enter the absolute value and number with ONE decimal place.)
4.Determine the location (from the left side) of the maximum shear stress (fv) in the beam made from an A-36 steel, in units of ft.(Enter the number with NO decimal places.)
5.Determine the maximum deflection () in this beam made from an A-36 steel, in units of in.(Enter the number with THREE decimal places as follows:0.0XX) Do NOT include a "-" sign.
6.Determine the location (from the left side) of the maximum deflection in the beam made from an A-36 steel, in units of ft.(Enter the number with NO decimal places.)
7.Determine the maximum shear stress (fV) in this beam made from an A-36 steel, in units of psi. (Enter the absolute value and number with ONE decimal place.)
1 . Determine the maximum bending stress ( fb )
