Question: ( 1 ) Distributed load on a framw a ) Determine the equivalent point load of the distributed load shown on the figure below. Indicate

(1) Distributed load on a framw

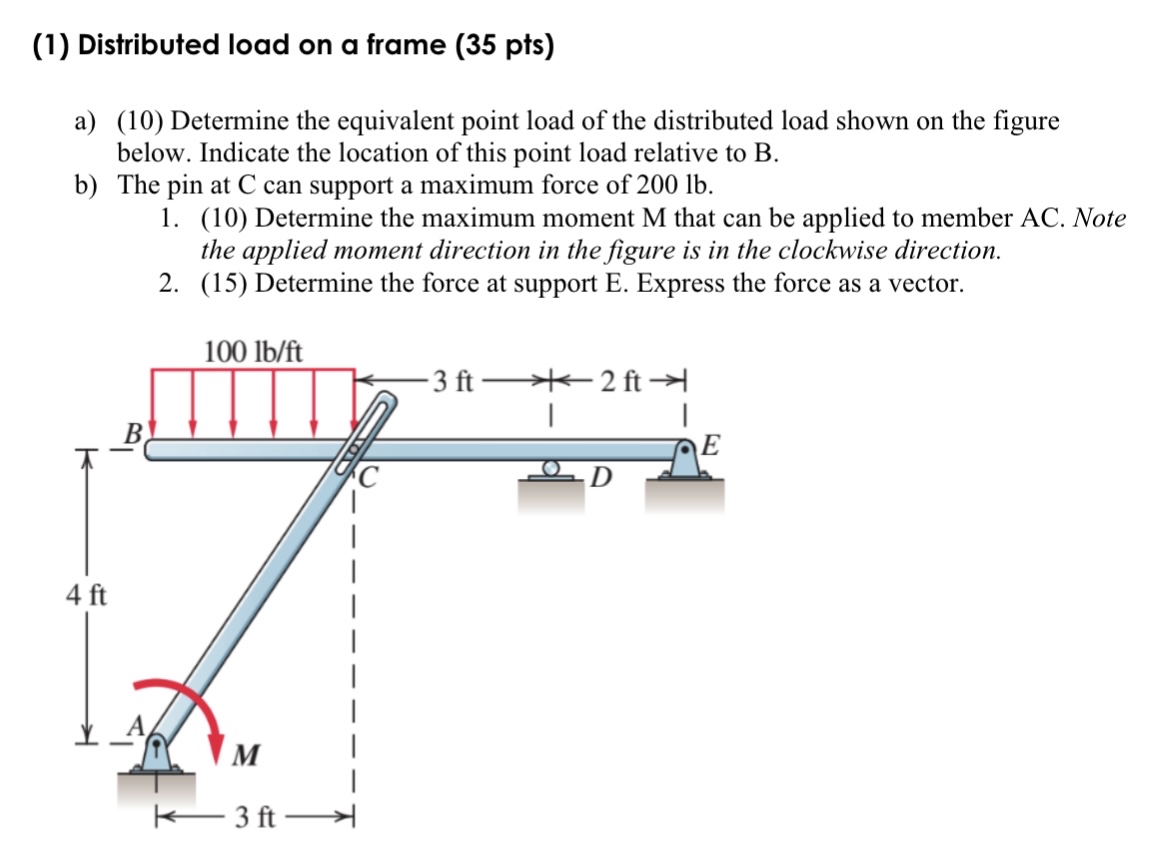

a) Determine the equivalent point load of the distributed load shown on the figure below. Indicate the location of this point load relative to B.
b) The pin at C can support a maximum force of 200lb.
Determine the maximum moment M that can be applied to member AC. Note the applied moment direction in the figure is in the clockwise direction.
Determine the force at support E.
Express the force as a vector. Show work and calculations please, thanks!
( 1 ) Distributed load on a framw a ) Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
