Question: 1. Draw the program graph. You must use line numbers to label all nodes in the graph. Do not use the statements or statement fragments

1. Draw the program graph. You must use line numbers to label all nodes in the graph. Do not use the statements or statement fragments themselves as nodes labels.

2. Compute the cyclomatic number using each of the three methods discussed in class. Show your work.

3. Calculate the P* using the given conditions under each problem. Show your work

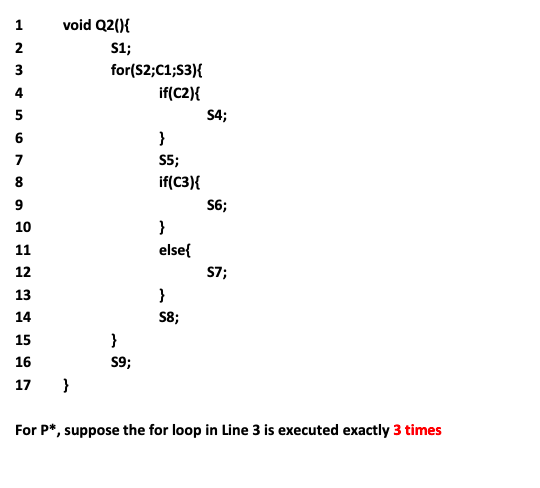

1. Draw the program graph. You must use line numbers to label
