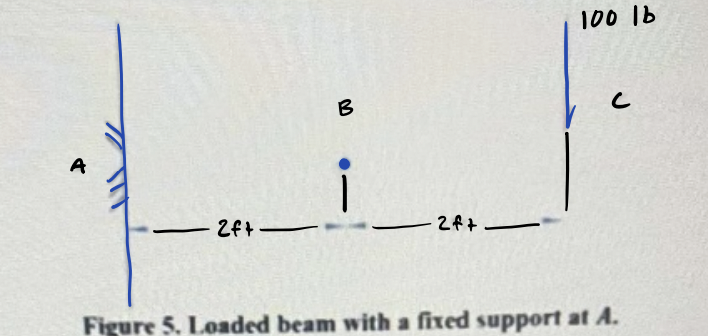

Question: 1 Figure 5 , Loaded beam with a fixed support at A . A ) For the member in the figure draw the right -

1 Figure 5, Loaded beam with a fixed support at A.A)For the member in the figure draw the right-side free body diagram, showing internal forces at point B. Use Positive Beam Sign Convenn.
1B)Write the equations of equilibrium (EoE)from the free body diagram in 1A.
1C)Calculation internal forces at point B from the equation of equilibruim (EoE) in problem 1B
1 Figure 5 , Loaded beam with a fixed support at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
