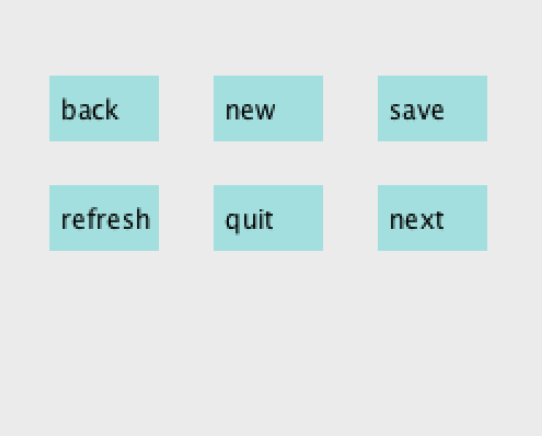

1 final int BUTTON_W = 50;

2 final int BUTTON_H = 30;

3 int buttonX[] = { 50, 125, 200, 50, 125, 200 };

4 int buttonY[] = { 50, 50, 50, 100, 100, 100 };

5 String buttonText[] = {"back", "new", "save", "refresh", "quit", "next"};

6

7 void setup() {

8 size(250, 200);

9 noStroke();

10 background(235);

11 rectMode(CENTER);

12

13 for (int i = 0; i

14 fill(175, 220, 220);

15 rect(buttonX[i], buttonY[i], BUTTON_W, BUTTON_H);

16 fill(0);

17 text(buttonText[i], buttonX[i]-20, buttonY[i]+5);

18 }

19 }

20

21 void draw() {

22 }

NOTE: The text() function in Processing places a given string (the first parameter) on the screen at the X and Y positions given by the second and third parameters. For example, text (Here, 10, 10); will print the word Here starting 10 pixels to the right of the left side of the display and 10 pixels down from the top of the display.

Now, suppose you wanted to write additional code so that after a button is clicked, your program displays the text of the button followed by the word clicked. Below is some code that attempts to do this, but it has some problems:

24 void mouseClicked() {

25 String displayText = ""; // assume click outside of buttons

26 boolean clickedOnButton = false // assume click outside of buttons

27

28 for (int i = 0; i

29 if (mouseX > buttonX[i] - BUTTON_W/2.0

30 && mouseX

31 && mouseY > buttonY[i] - BUTTON_H/2.0

32 && mouseY

33

34 displayText == buttonText[i];

35 clickedOnButton = true;

36 }

37 }

38

39 if (clickedOnButton) {

40 text(displayText + clicked, 50, 150)

41 }

42 }

1) Is there something wrong with line 40?

a)Yes, it will be fine the first time it's run but after that it will look funny.

b)Yes, it will run off the right side of the display

c)Yes, it will extend below the bottom of the display

d)No, it's fine

2) Why isnt there still anything in draw()?

a)Because the only motion (i.e. the text that appears at the bottom) can be handled in mouseClicked()

b)

Because all the variables are declared before setup(), so they can't be used in draw()

c)Because arrays can only be used in setup()

d)Because there can only be one background() statement

3) What are the coordinates (x and y positions) of the end of the text written by line 40?

		a)(50, 150)
		b)(125, 150)
		c)Depends on which button was clicked
		d)Depend on how many times a button has been clicked

back new save refresh quit next
