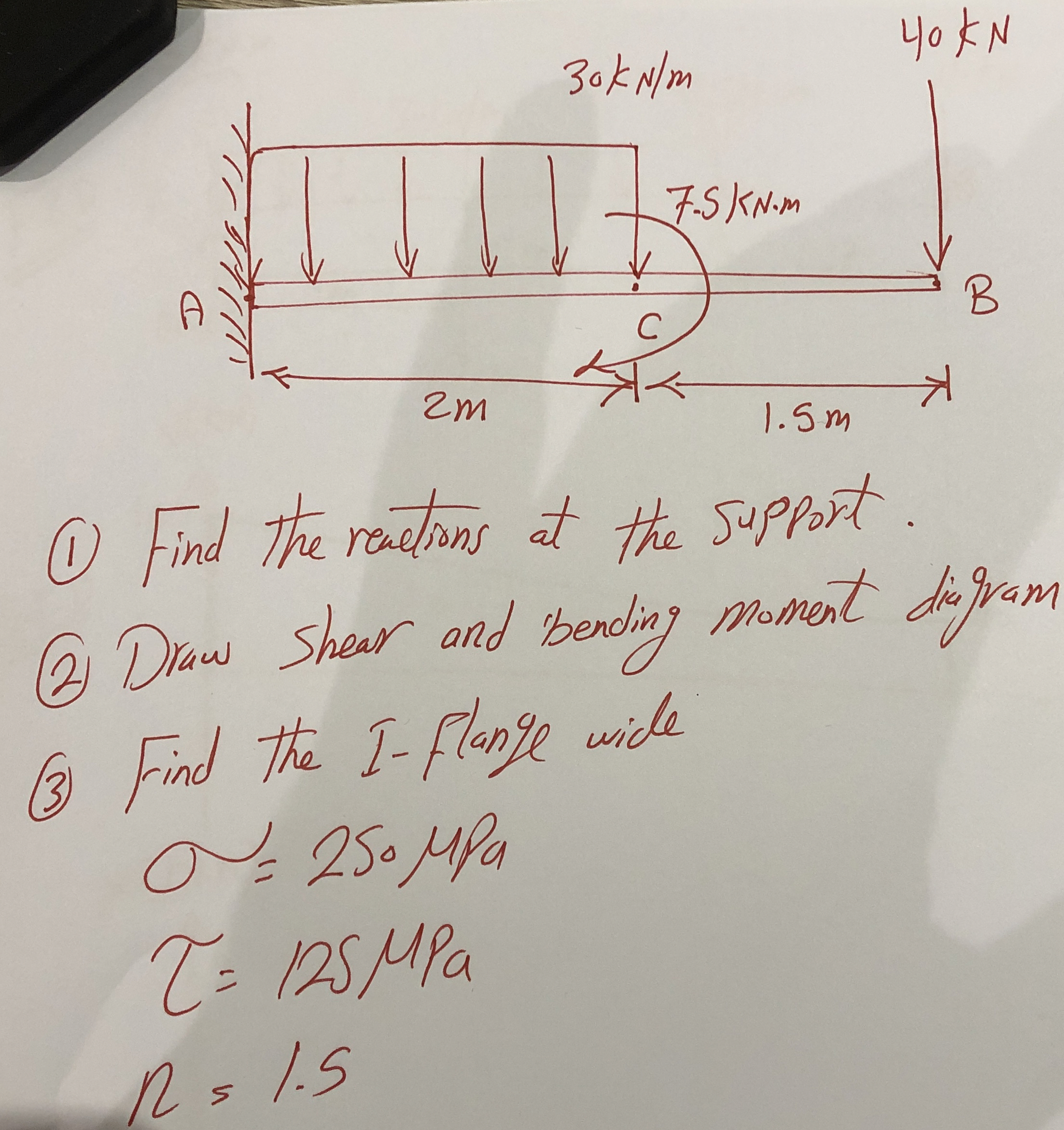

Question: ( 1 ) Find the reactions at the support. ( 2 ) Draw shear and bending moment diagram ( 3 ) Find the I -

(1) Find the reactions at the support.
(2) Draw shear and bending moment diagram
(3) Find the I-flangle wide
=250Pa
=125Pa
Factor of saftey=1.5
( 1 ) Find the reactions at the support. ( 2 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
