Question: ( 1 ) For a retaining wall shown in Figure, determine the lateral earth force at rest per unit length of the wall. Also determine

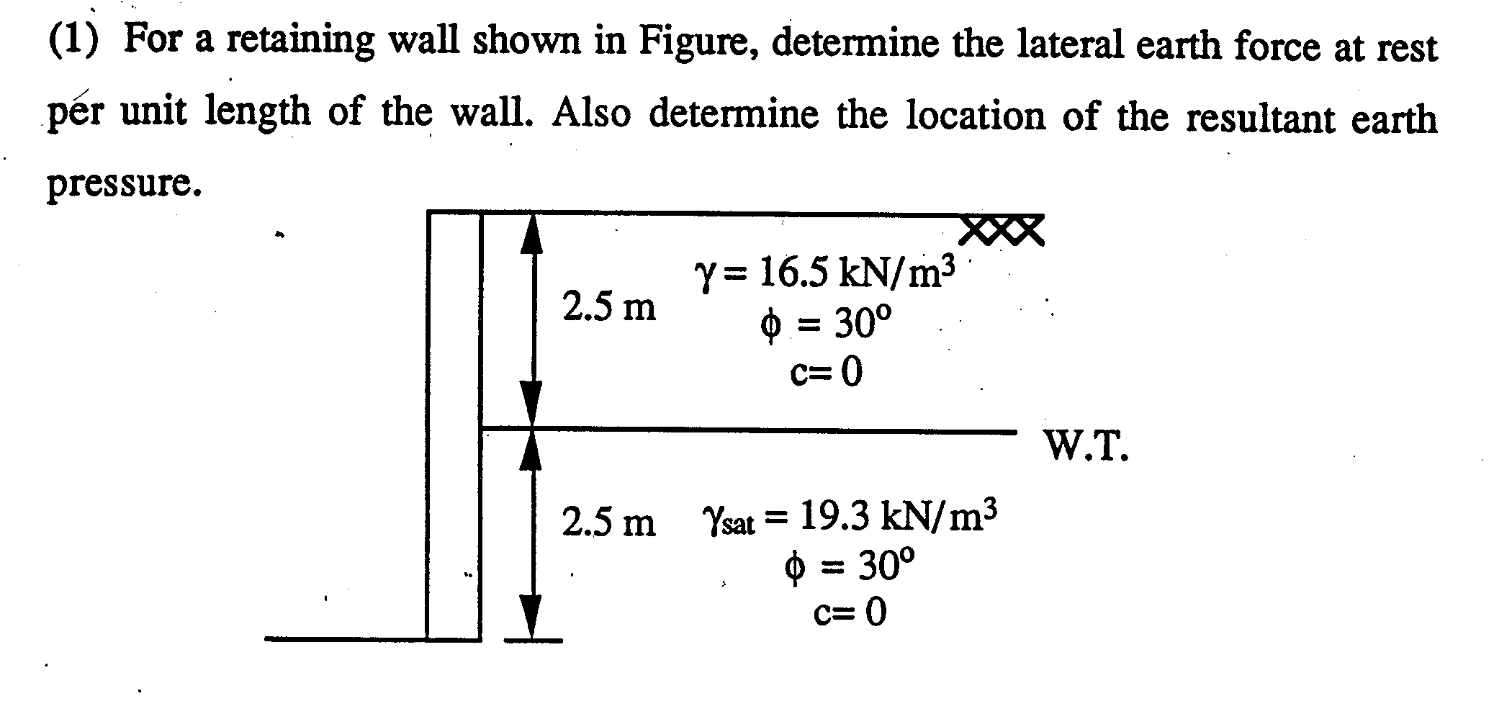

(1) For a retaining wall shown in Figure, determine the lateral earth force at rest per unit length of the wall. Also determine the location of the resultant earth pressure.
( 1 ) For a retaining wall shown in Figure,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

A retaining wall is shown in Figure. Determine Rankine's active force, P _ ( a ) , per unit length of the wall. Also determine the location of the resultant.
