Question: 1. For the following unity feedback system Gc(s) is a PID controller and G(s) is G(s)=1/[s(s+1)(s+0.5)]. a) Draw root locus curve for Kp changes from

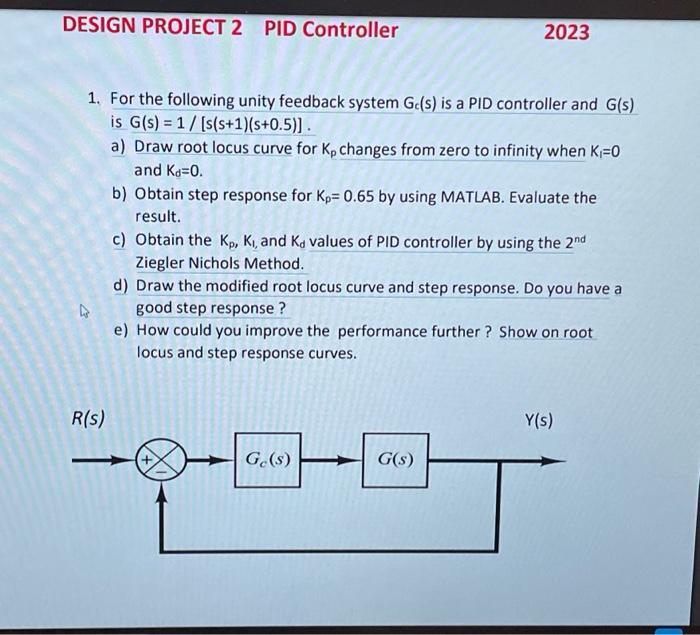

1. For the following unity feedback system Gc(s) is a PID controller and G(s) is G(s)=1/[s(s+1)(s+0.5)]. a) Draw root locus curve for Kp changes from zero to infinity when K1=0 and Kd=0. b) Obtain step response for Kp=0.65 by using MATLAB. Evaluate the result. c) Obtain the Kp,K1, and Kd values of PID controller by using the 2nd Ziegler Nichols Method. d) Draw the modified root locus curve and step response. Do you have a good step response? e) How could you improve the performance further? Show on root locus and step response curves

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

1. For the following unity feedback system Gc(s) is a PID controller and G(s) is G(s)=1/[s(s+1)(s+4)]. a) Draw root locus curve for Kp changes from zero to infinity when K1=0 and Kd=0. b) Obtain the...

1. For the following unity feedback system Ge(s) is a PID controller and G(s) is G(s) = 1/[s(s+1)(s+4)]. a) Draw root locus curve for K, changes from zero to infinity when K=0 and Ka=0. R(S) b)...

For the following unity feedback system G 2 ( s ) is a PID controller and G ( s ) is G ( s ) = 1 s ( s + 1 ) ( s + 4 ) . a ) Draw root locus curve for K p changes from zero to infinity when K 1 = 0...

For the following unity feedback system G l o n ( s ) is a PID controller and G ( s ) is G ( s ) = 1 s ( s + 1 ) ( s + 4 ) . a ) Draw root locus curve for K p changes from zero to infinity when K l =...

DESIGN PROJECT 2 PID Controller For the following unity feedback system G c ( s ) is a PID controller and G ( s ) is G ( s ) = 1 s ( s + 1 ) ( s + 4 ) . a ) Draw root locus curve for K p changes from...

DESIGN PROJECT 2 PID Controller 2023 1. For the following unity feedback system Ge(s) is a PID controller and G(s) is G(s) 1/[s(s+1)(s+0.5)]. a) Draw root locus curve for Kp changes from zero to...

I. II. III. List of Equipment/Software MATLAB LABVIEW Deliverables Summarized learning outcomes LabVIEW programming files Controller design and parameters for each case Procedure: 1. Consider the...

DESIGN PROJECT 2 PID Controller 2023 1. For the following unity feedback system G.(s) is a PID controller and G(s) is G(s)=1/[s(s+1)(s+0.5)]. a) Draw root locus curve for Kp changes from zero to...

DESIGN PROJECT 2 PID Controller 2023 1. For the following unity feedback system G.(s) is a PID controller and G(s) is G(s) =1/[s(s+1)(s+0.5)]. a) Draw root locus curve for Kp changes from zero to...
