Question: 1. For the problem given with minimum approach temperature difference, Tmin=10C, carry out the Energy Integration Analysis using Pinch Technology by determining the following: (a)

1. For the problem given with minimum approach temperature difference, Tmin=10C,

carry out the Energy Integration Analysis using Pinch Technology by determining the

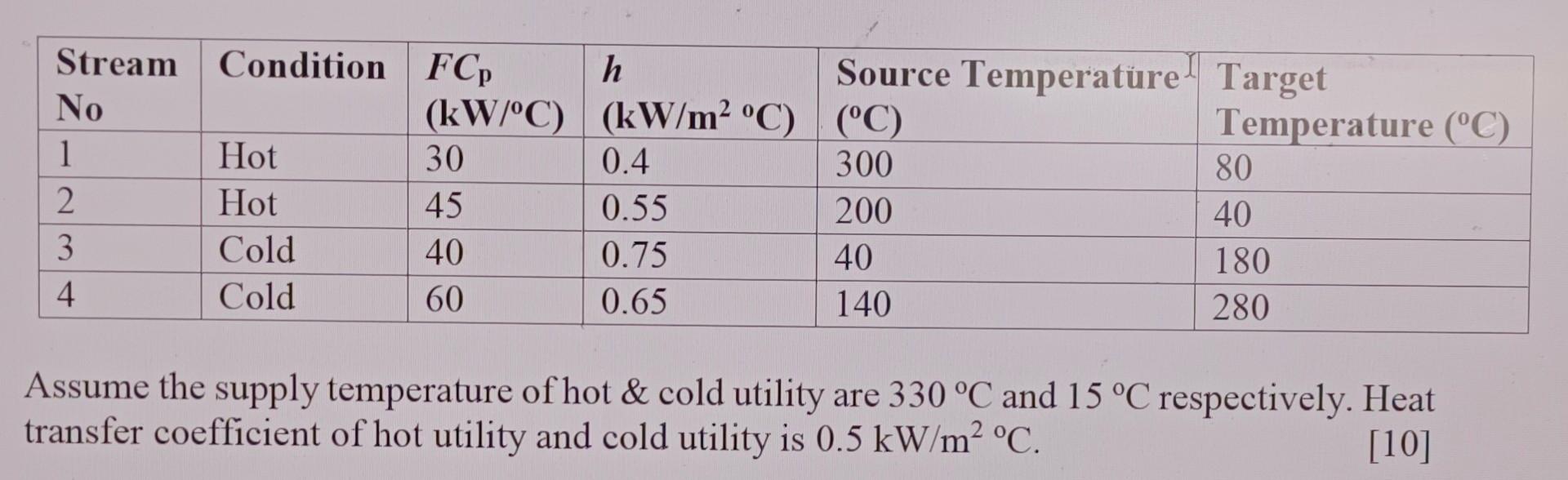

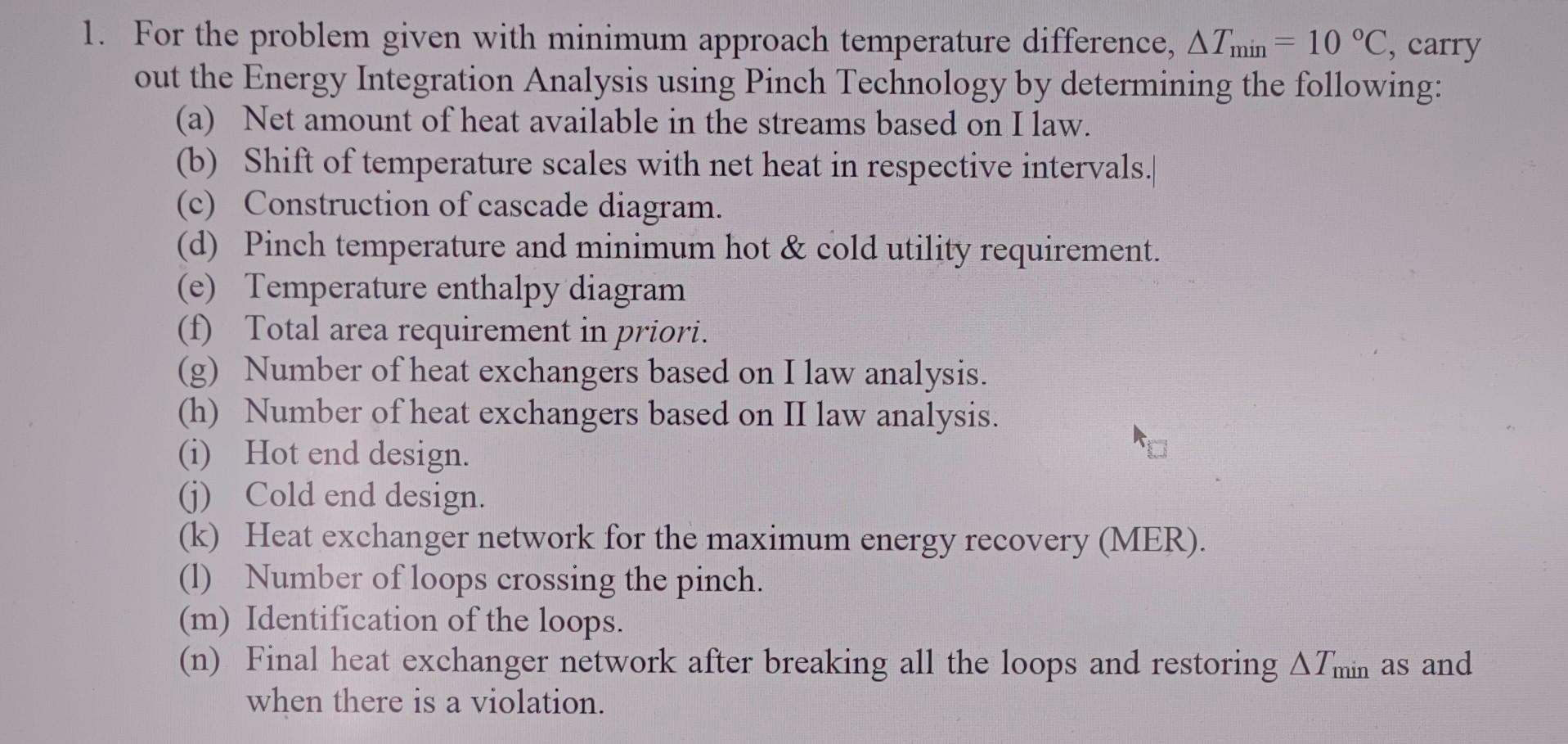

1. For the problem given with minimum approach temperature difference, Tmin=10C, carry out the Energy Integration Analysis using Pinch Technology by determining the following: (a) Net amount of heat available in the streams based on I law. (b) Shift of temperature scales with net heat in respective intervals. (c) Construction of cascade diagram. (d) Pinch temperature and minimum hot \& cold utility requirement. (e) Temperature enthalpy diagram (f) Total area requirement in priori. (g) Number of heat exchangers based on I law analysis. (h) Number of heat exchangers based on II law analysis. (i) Hot end design. (j) Cold end design. (k) Heat exchanger network for the maximum energy recovery (MER). (l) Number of loops crossing the pinch. (m) Identification of the loops. (n) Final heat exchanger network after breaking all the loops and restoring Tmin as and when there is a violation. Assume the supply temperature of hot & cold utility are 330C and 15C respectively. Heat transfer coefficient of hot utility and cold utility is 0.5kW/m2C. [10]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
