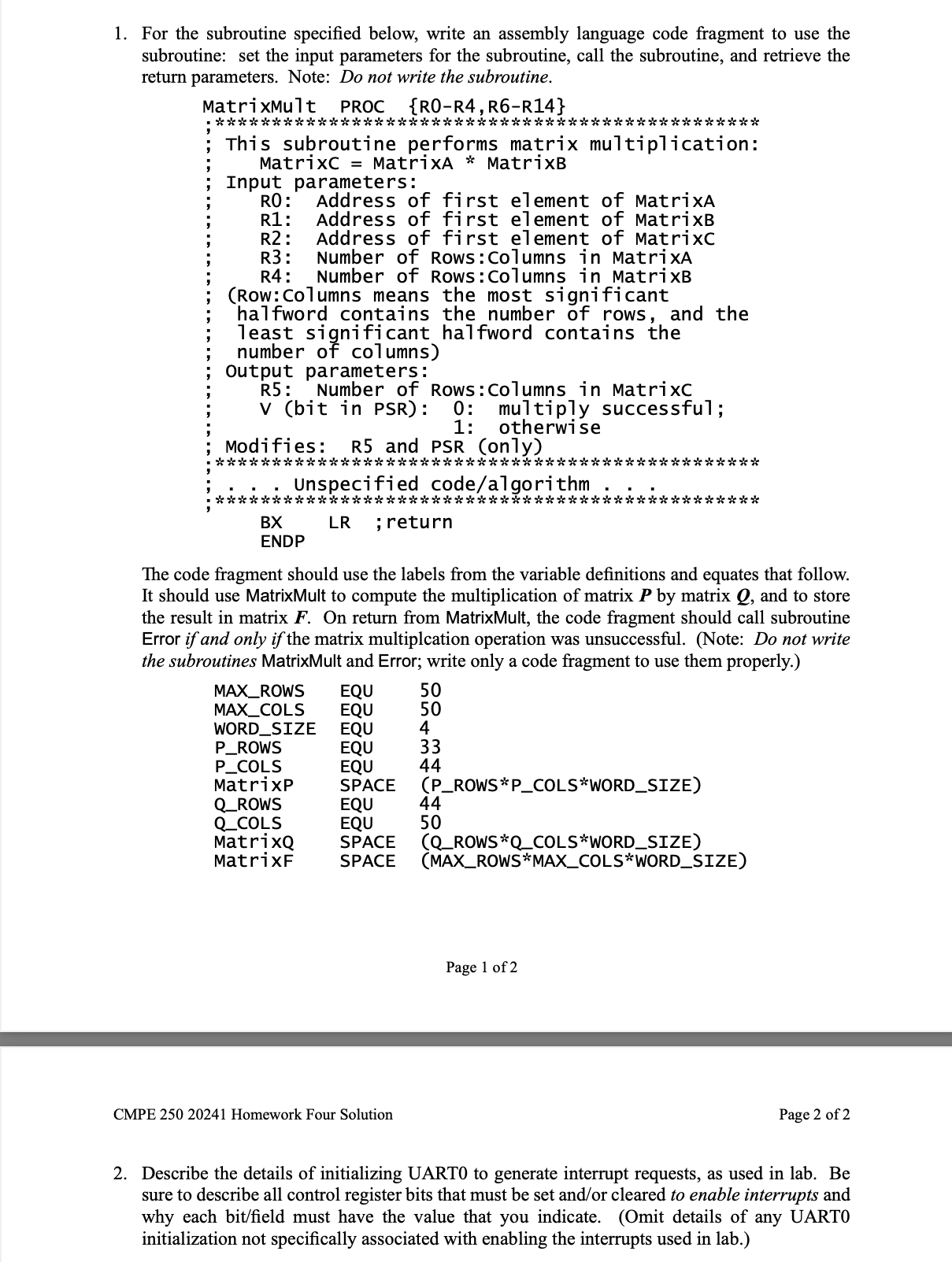

$1.$ For the subroutine specified below, write an assembly language code fragment to use the subroutine: set the input parameters for the subroutine, call the subroutine, and retrieve the return parameters. Note: Do not write the subroutine.

$```$

MatrixMult PROC $\{$R$0-$R$4,$R$6-$R$14\}$

;$*****************************************************$

This subroutine performs matrix multiplication:

MatrixC $=$ MatrixA $*$ MatrixB

Input parameters:

R$0$: Address of first element of MatrixA

R$1$: Address of first element of MatrixB

R$2$: Address of first element of MatrixC

R$3$: Number of Rows:Columns in MatrixA

R$4$: Number of Rows:Columns in MatrixB

$($Row:Columns means the most significant

halfword contains the number of rows, and the

least significant halfword contains the

number of columns$)$

Output parameters:

R$5$: Number of Rows:Columns in MatrixC

V $($bit in PSR$)$: $0$: multiply successful;

$1$: otherwise

Modifies: R$5$ and PSR $($only$)$

$*******************************************************$

; $...$ Unspecified code$/$algorithm

;$*******************************************************$

BX LR ;return

ENDP

$```$

The code fragment should use the labels from the variable definitions and equates that follow. It should use MatrixMult to compute the multiplication of matrix $\backslash (\backslash$boldsymbol$\{$P$\}\backslash )$ by matrix $\backslash (\backslash$boldsymbol$\{$Q$\}\backslash ),$ and to store the result in matrix $\backslash (\backslash$boldsymbol$\{$F$\}\backslash ).$ On return from MatrixMult, the code fragment should call subroutine Error if and only if the matrix multiplcation operation was unsuccessful. $($Note: Do not write the subroutines MatrixMult and Error; write only a code fragment to use them properly.$)$

$2.$ Describe the details of initializing UART$0$ to generate interrupt requests, as used in lab. Be sure to describe all control register bits that must be set and$/$or cleared to enable interrupts and why each bit$/$field must have the value that you indicate. $($Omit details of any UART$0$ initialization not specifically associated with enabling the interrupts used in lab.$)$
