Question: 1 . Given the circuit below, find: a ) The complex power of the inductor b ) The total complex power of the circuit c

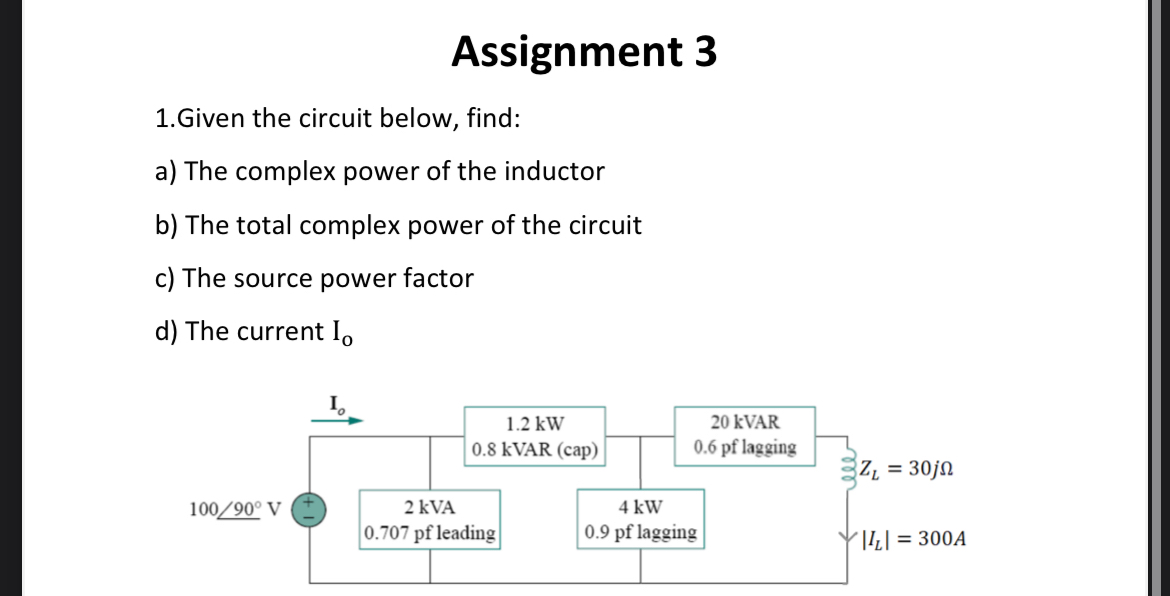

1.Given the circuit below, find:
a) The complex power of the inductor
b) The total complex power of the circuit
c) The source power factor
d) The current Io
1 . Given the circuit below, find: a ) The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
