$1.$ Homework

Using the topology from the previous section, and given the available IP address space $10\mathrm{.}10\mathrm{.}172\mathrm{.}0/24($i$.$e$.,$ the range $10\mathrm{.}10\mathrm{.}172\mathrm{.}010\mathrm{.}10\mathrm{.}172\mathrm{.}255$ from which you may

assign IP addresses$),$ your challenge is to design subnets for the following three LANs, with different design constraints:

The LAN connected to router A $($the top one on the left$-$hand side of the topology$)$ must be able to support at least $50$ hosts.

The LAN connected to router B $($the middle one$)$ must be able to support at least $75$ hosts.

The LAN connected to router C $($the bottom one$)$ must be able to support at least $20$ hosts.

You need to follow all the conventions mentioned in Section $0$ above $($i$.$e$.,$ allocate addresses starting from the largest subnet$).$ After completing your design,

$$ Go to Empty Google Drawing for "Designing Subnets."

$$ Click "File $>$ Make a copy". Name the document design$-$subnets$-$homework and choose

an appropriate folder on your Google Drive. Click "Make a copy".

$$ Fill in the network information on the Google Drawing according to your design.

$$ Finally, click "File $>$ Download as $>$ PDF Document $(.$pdf$)$ and submit for the Module $5$ Homework

Assignment.

Please answer if my graph is correct or not? If not please correct it

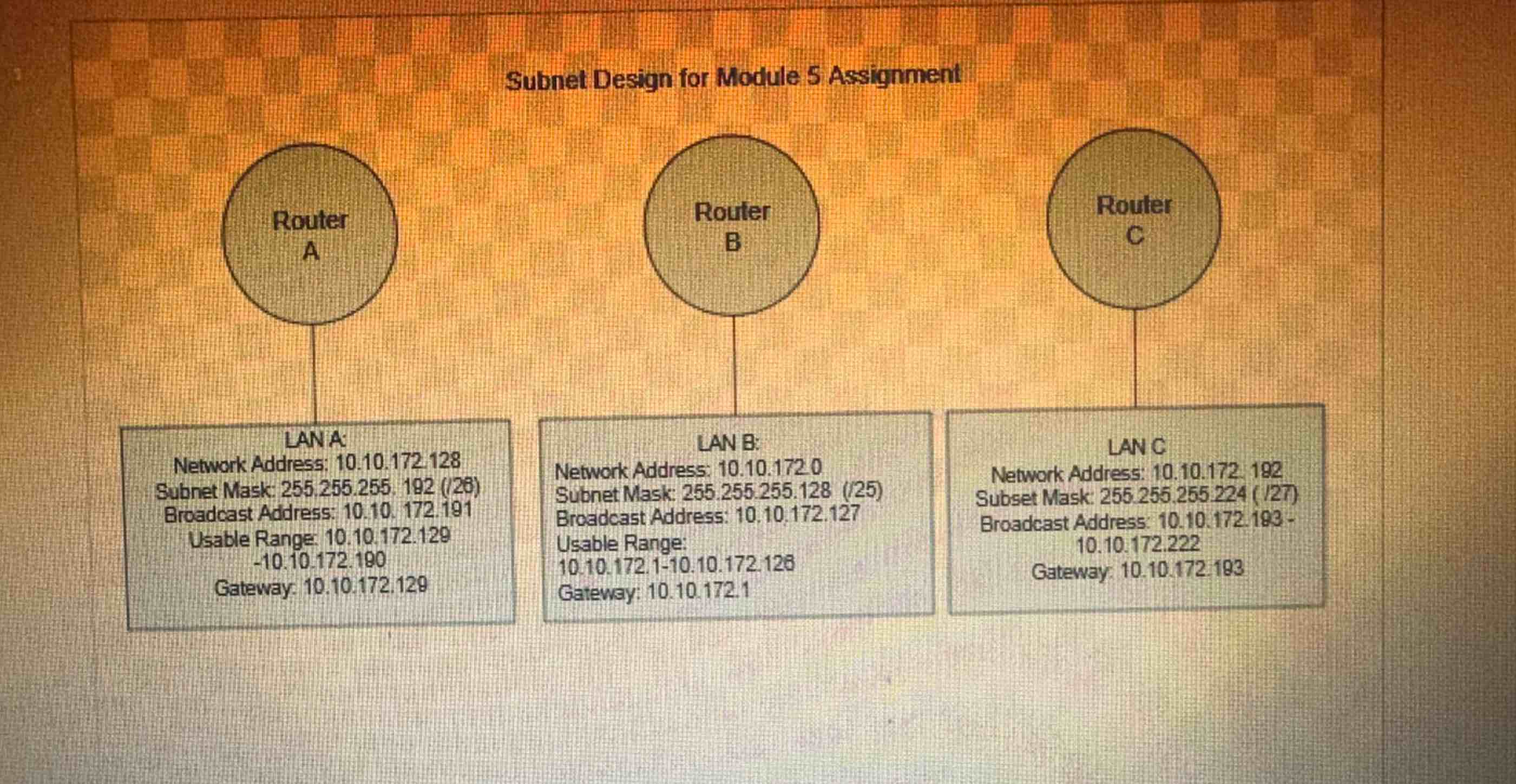

Subnet Design for Module $5$ Assignment

LANA

Network Address: $10\mathrm{.}10\mathrm{.}172.128$

Subnet Mask. $255\mathrm{.}255\mathrm{.}255.192(126)$

Broadcast Address: $10\mathrm{.}10.172\mathrm{.}191$

Usable Range: $10\mathrm{.}10\mathrm{.}172\mathrm{.}129$

$-10\mathrm{.}10\mathrm{.}172\mathrm{.}180$

Gateway: $10*10*172\mathrm{.}129$

LANB:

Network Address: $10\mathrm{.}10\mathrm{.}1720$

Subnet Mask: $255\mathrm{.}255\mathrm{.}255\mathrm{.}128(125)$

Broadcast Address: $10.10.172\mathrm{.}127$

Usable Range:

$10\mathrm{.}10\mathrm{.}172\mathrm{.}1-10\mathrm{.}10\mathrm{.}172\mathrm{.}126$

Gateway: $10,10\mathrm{.}172\mathrm{.}1$

LANC

Network Address: $10\mathrm{.}10\mathrm{.}172.192$

Subset Mask: $255\mathrm{.}255\mathrm{.}255\mathrm{.}224(127)$

Broadcast Address: $10\mathrm{.}10\mathrm{.}172\mathrm{.}183-$

$10\mathrm{.}10\mathrm{.}172\mathrm{.}222$

Gateway: $10\mathrm{.}10\mathrm{.}172\mathrm{.}193$
