Question: 1 . How many bits do you need to represent the binary equivalent of a decimal number in the range ( [ 0 ,

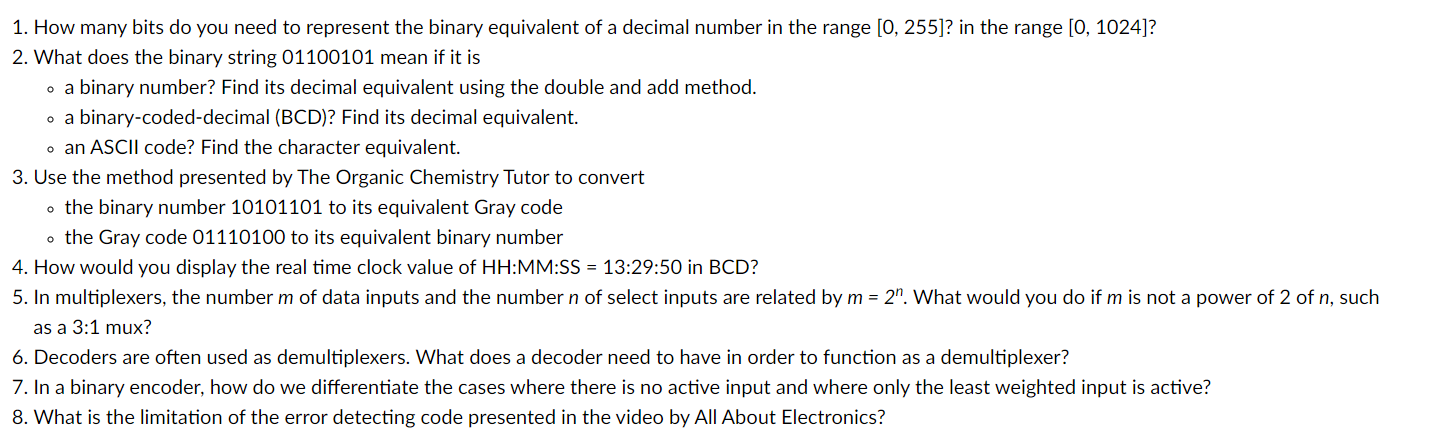

1. How many bits do you need to represent the binary equivalent of a decimal number in the range \([0,255]\)? in the range \([0,1024]\)?
2. What does the binary string 01100101 mean if it is
- a binary number? Find its decimal equivalent using the double and add method.
- a binary-coded-decimal (BCD)? Find its decimal equivalent.
- an ASCII code? Find the character equivalent.
3. Use the method presented by The Organic Chemistry Tutor to convert
- the binary number 10101101 to its equivalent Gray code
- the Gray code 01110100 to its equivalent binary number
4. How would you display the real time clock value of \(\mathrm{HH}: \mathrm{MM}: \mathrm{SS}=\)13:29:50 in BCD?
5. In multiplexers, the number \( m \) of data inputs and the number \( n \) of select inputs are related by \( m=2^{n}\). What would you do if \( m \) is not a power of 2 of \( n \), such as a 3:1 mux?
6. Decoders are often used as demultiplexers. What does a decoder need to have in order to function as a demultiplexer?
7. In a binary encoder, how do we differentiate the cases where there is no active input and where only the least weighted input is active?
8. What is the limitation of the error detecting code presented in the video by All About Electronics?
1 . How many bits do you need to represent the
