Question: 1 . Identify any zero force members 2 . Calculate the member forces in CD and KL using Method of Joints 3 . Calculate the

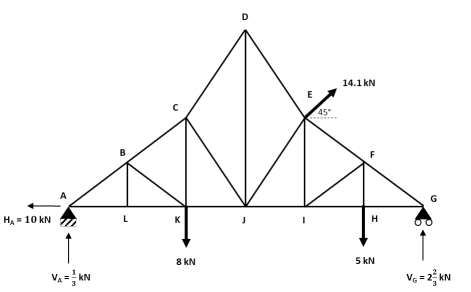

1. Identify any zero force members 2. Calculate the member forces in CD and KL using Method of Joints 3. Calculate the member force in EJ using Method of Sections.
1 . Identify any zero force members 2 . Calculate

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
