Question: 1. Identify FIVE (5) components in the above system description. Based on your answer in Question 1(a) draw a system context model /diagram. Q1- A

1. Identify FIVE (5) components in the above system description. Based

Identify FIVE (5) components in the above system description.
Based on your answer in Question 1(a) draw a system context model /diagram.

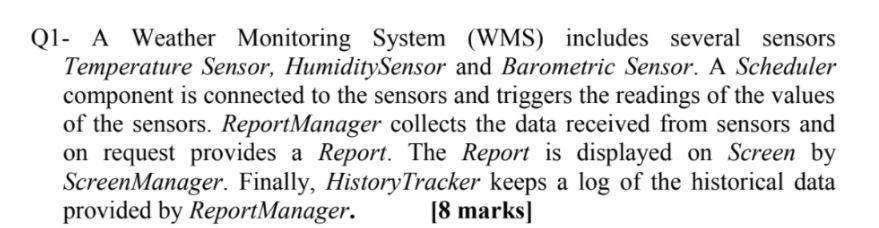

Q1- A Weather Monitoring System (WMS) includes several sensors Temperature Sensor, HumiditySensor and Barometric Sensor. A Scheduler component is connected to the sensors and triggers the readings of the values of the sensors. Report Manager collects the data received from sensors and on request provides a Report. The Report is displayed on Screen by ScreenManager. Finally, History Tracker keeps a log of the historical data provided by ReportManager. [8 marks)
