Question: 1- in the figure below After assigning IP address as shown on the figure, Write the command lines of OSPF configure for R1, R2, R3,

1- in the figure below After assigning IP address as shown on the figure, Write the command lines of OSPF configure for R1, R2, R3, and R4

Then describe and give the output of:

-R4#show IP route

-R4#show IP protocol 1- in the figure below After assigning IP address as shown on

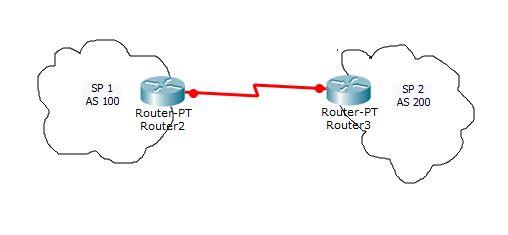

2- Based on the following figure, Describe the BGP protocol

1. How does BGP configured

2. interior gateway protocol

3. How does BGP manage an enterprise with routing protocols such as OSPF

4. Autonomous system AS based on the given figure.

5. IBGP and EBGP

the figure, Write the command lines of OSPF configure for R1, R2,

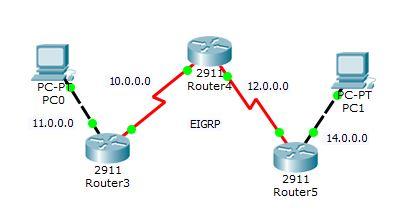

3- Configure the following network ( below using EIGRP, give only

interface command mode and router command mode

Describe the following:

1. Which command used by the PC to test the network connection

2. Describe the output of show IP route based command line as given in the network

3. Describe the output of show IP protocol command-line based as given in the network R3, and R4 Then describe and give the output of: -R4#show IP
