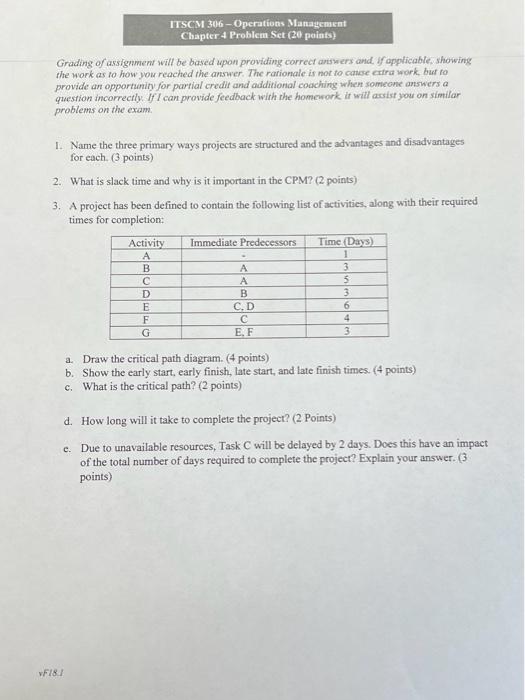

1. Name the three primary ways projects are structured and the advantages and disadvantages for each. (3 points) 2. What is slack time and why is it important in the CPM? (2 points) 3. A project has been defined to contain the following list of activities, along with their required times for completion: Activity A B C D E F G vF18.1 Immediate Predecessors A A B C, D C E, F Time (Days) 1 3 5 3 6 4 3 a. Draw the critical path diagram. (4 points) b. Show the early start, early finish, late start, and late finish times. (4 points) c. What is the critical path? (2 points) d. How long will it take to complete the project? (2 Points) e. Due to unavailable resources, Task C will be delayed by 2 days. Does this have an impact of the total number of days required to complete the project? Explain your answer. (3 points)

Grading of assignment will be based upon providing correct answers and, if applicable, showing the work as to how your reached the answer. The rafionale is not to canse ertro werk, bud to provide an opportunity for partial credit and additional coaching when someone answers a question incorrectly. If I can provide feedback with the homework it will arsist you on similar problems on the exam. 1. Name the three primary ways projects are structured and the advantages and disadvantages for each. (3 points) 2. What is slack time and why is it important in the CPM? (2 points) 3. A project has been defined to contain the following list of activities, along with their required times for completion: a. Draw the critical path diagram. ( 4 points) b. Show the early start, early finish, late start, and late finish times. ( 4 points) c. What is the critical path? (2 points) d. How long will it take to complete the project? (2 Points) e. Due to unavailable resources, Task C will be delayed by 2 days. Does this have an impact of the total number of days required to complete the project? Explain your answer. (3 points)
