Question: ( 1 point ) 2 D shelf bracket angled force 0 1 A shelf bracket has a force of F = 3 5 2 N

(1 point)2D shelf bracket angled force 01

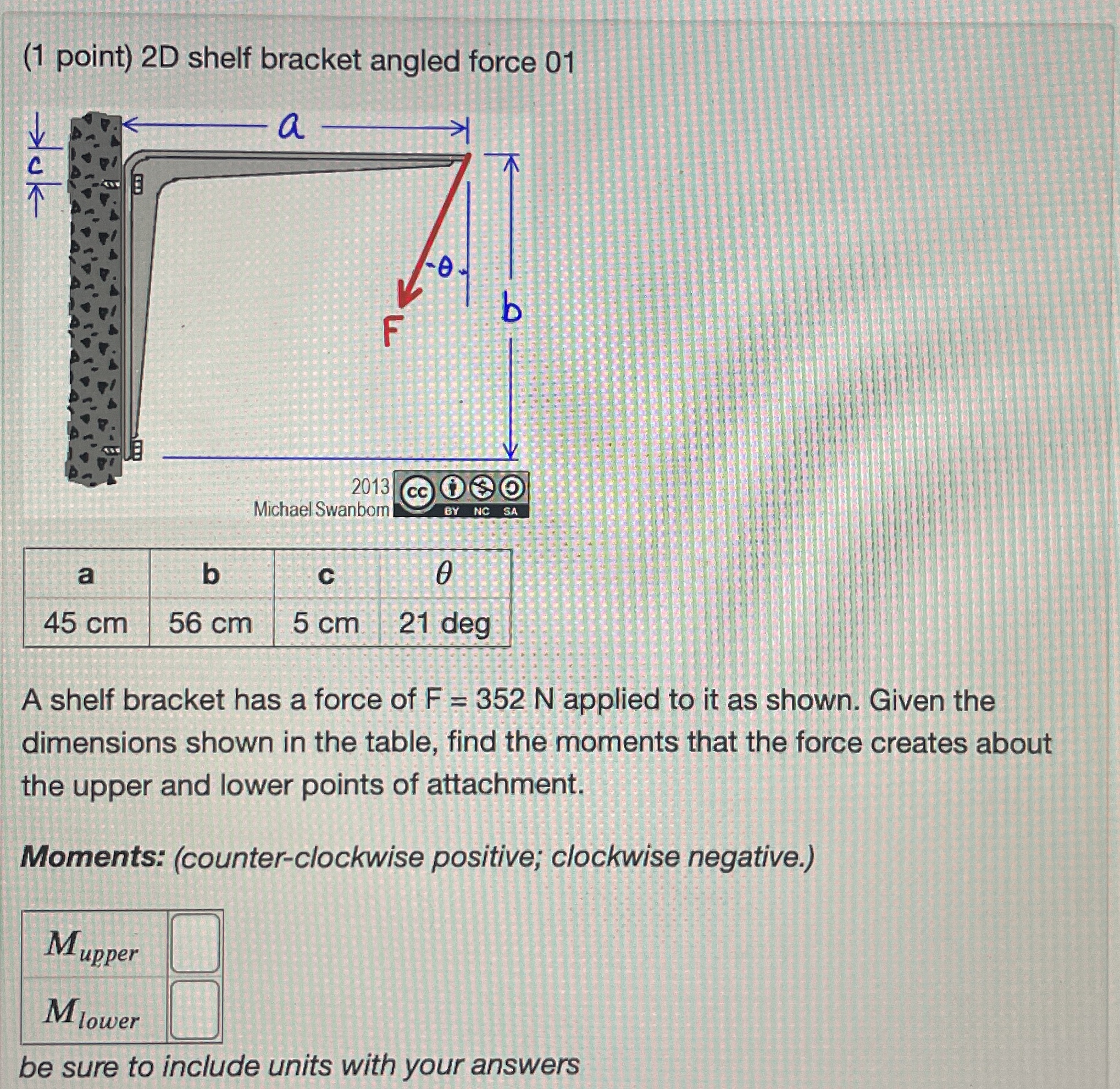

A shelf bracket has a force of F=352N applied to it as shown. Given the
dimensions shown in the table, find the moments that the force creates about
the upper and lower points of attachment.
Moments: (counter-clockwise positive; clockwise negative.)
be sure to include units with your answers
( 1 point ) 2 D shelf bracket angled force 0 1 A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
