Question: 1 . Problem 2 2 1 1 1 6 a ( a ) Find VC as a function of time, i . e .

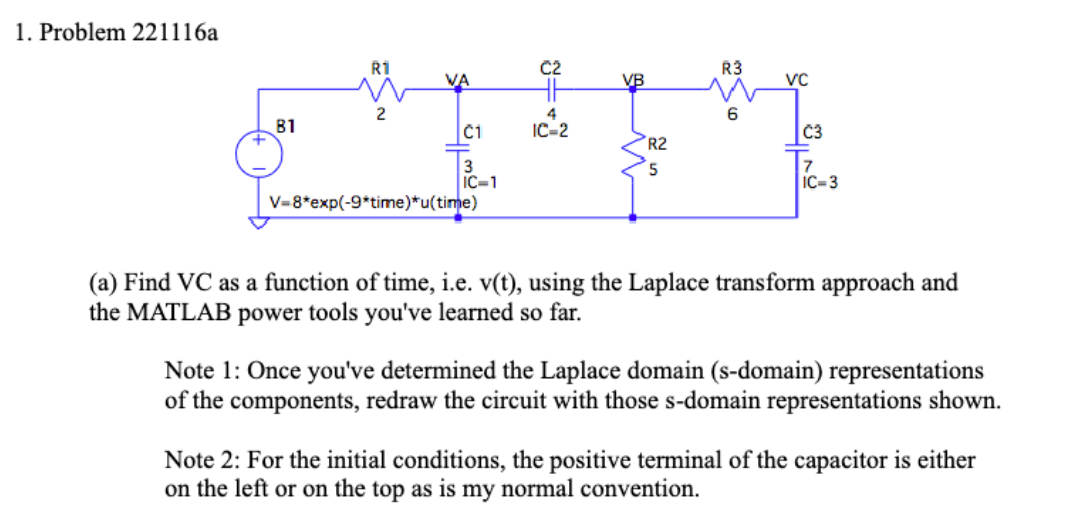

1. Problem 221116a
(a) Find VC as a function of time, i.e.\(\mathrm{v}(\mathrm{t})\), using the Laplace transform approach and the MATLAB power tools you've learned so far.
Note 1: Once you've determined the Laplace domain (s-domain) representations of the components, redraw the circuit with those s-domain representations shown.
Note 2: For the initial conditions, the positive terminal of the capacitor is either on the left or on the top as is my normal convention.
1 . Problem 2 2 1 1 1 6 a ( a ) Find VC as a
