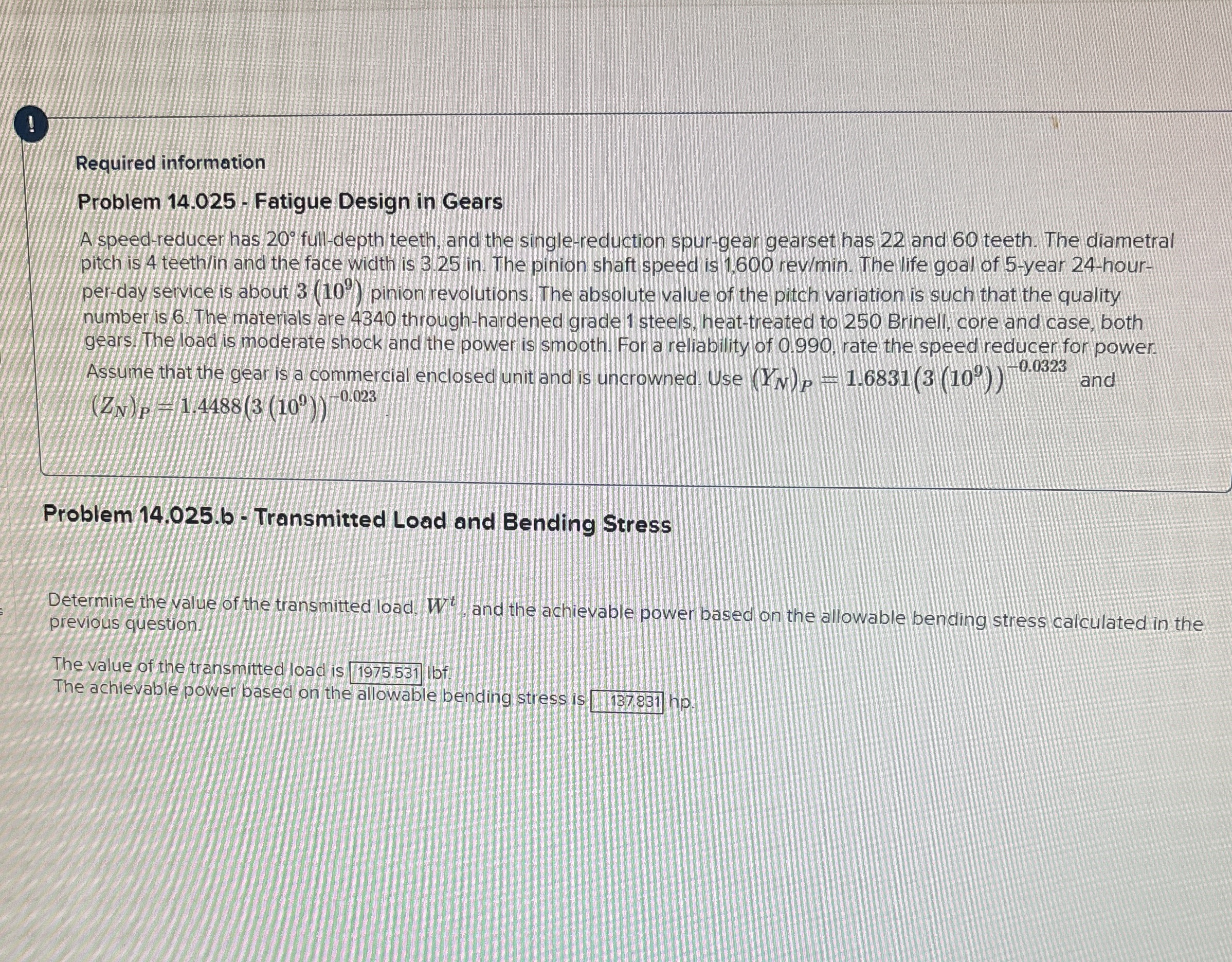

Required information

Problem $14\mathrm{.}025-$ Fatigue Design in Gears

A speed$-$reducer has $20$ full$-$depth teeth, and the single$-$reduction spur$-$gear gearset has $22$ and $60$ teeth. The diametral

pitch is $4$ teeth$/$in and the face width is $3\mathrm{.}25$ in $.$ The pinion shaft speed is $1,600re\frac{v}{m}in.$ The life goal of $5-$year $24-$hour$-$

per$-$day service is about $3({10}^9)$ pinion revolutions. The absolute value of the pitch variation is such that the quality

number is $6.$ The materials are $4340$ through$-$hardened grade $1$ steels, heat$-$treated to $250$ Brinell, core and case, both

gears. The load is moderate shock and the power is smooth. For a reliability of $0\mathrm{.}990,$ rate the speed reducer for power.

Assume that the gear is a commercial enclosed unit and is uncrowned. Use $(Y_N{)}_P=1\mathrm{.}6831(3({10}^9){)}^{-0\mathrm{.}0323}$ and

$(Z_N{)}_P=1\mathrm{.}4488(3({10}^9){)}^{-0\mathrm{.}023}$

Problem $14\mathrm{.}025.$b$.$ Transmitted Load and Bending Stress

Determine the value of the transmitted load. $W^t,$ and the achievable power based on the allowable bending stress calculated in the

previous question.

The value of the transmitted load is $1975\mathrm{.}531$ lbf$.$

The achievable power based on the allowable bending stress is $1737\mathrm{.}831$ hp $.$p
