Question: 1 Shear Flow with Different Wall Thicknesses: Modified C - Channel Beam We computed the shear flow distribution for a C - channel beam in

1 Shear Flow with Different Wall Thicknesses: Modified C-Channel Beam

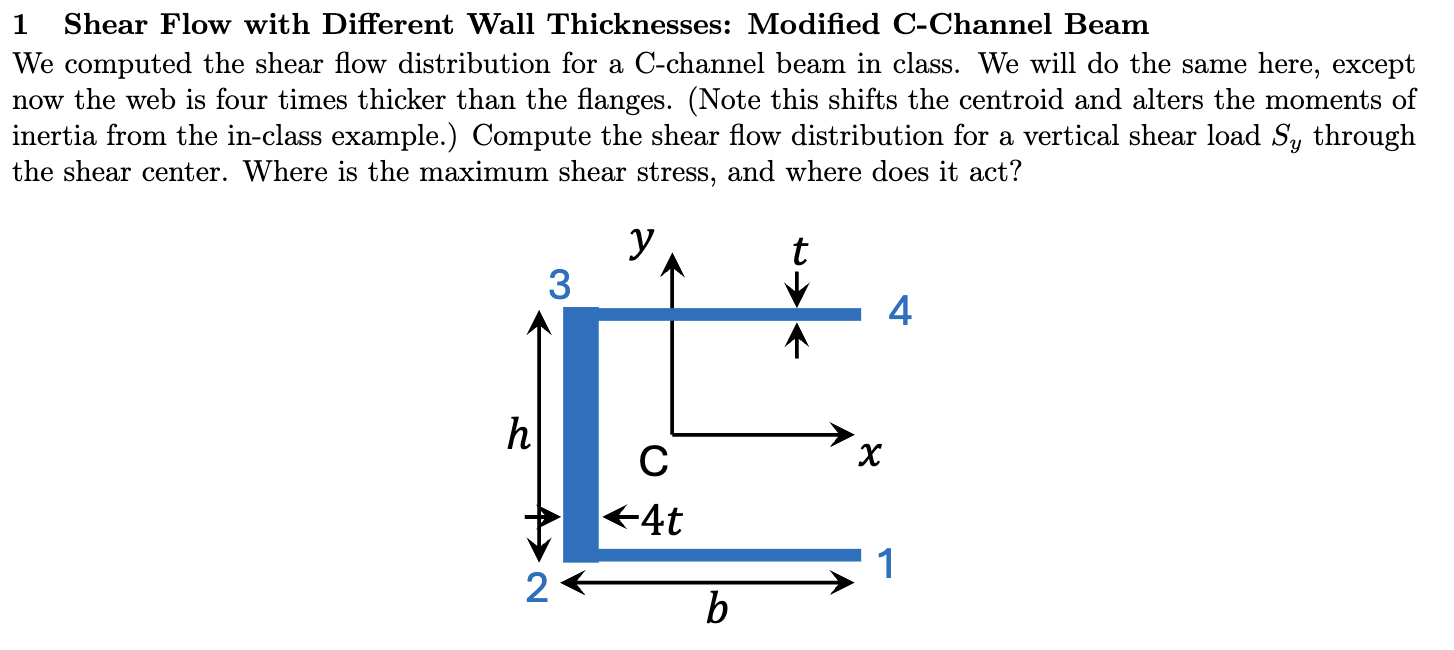

We computed the shear flow distribution for a C-channel beam in class. We will do the same here, except now the web is four times thicker than the flanges. (Note this shifts the centroid and alters the moments of inertia from the in-class example.) Compute the shear flow distribution for a vertical shear load \( S_{y}\) through the shear center. Where is the maximum shear stress, and where does it act?
1 Shear Flow with Different Wall Thicknesses:

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
