Question: 1. Simplify the following functional expression using Boolean algebra and its identities. List the identity used at each step. F(x,y,z)=xy+xyz+xyz 2. Use any method to

identities. List the identity used at each step. F(x,y,z)=xy+xyz+xyz 2. Use any

method to prove the following either True or False. yz+xyz+xyz=xy+xz a. List

the truth table for F. b. Draw the logic circuit using the

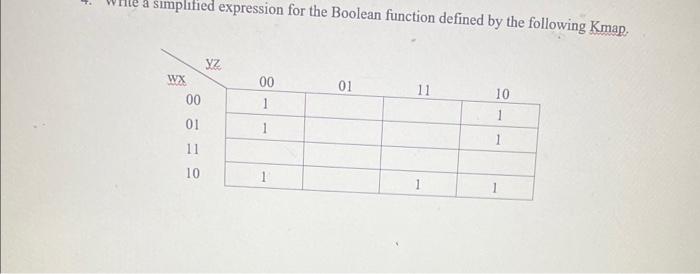

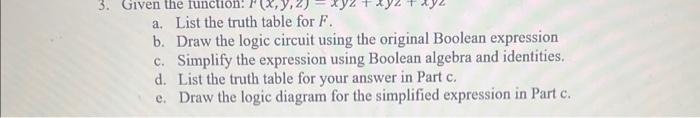

1. Simplify the following functional expression using Boolean algebra and its identities. List the identity used at each step. F(x,y,z)=xy+xyz+xyz 2. Use any method to prove the following either True or False. yz+xyz+xyz=xy+xz a. List the truth table for F. b. Draw the logic circuit using the original Boolean expression c. Simplify the expression using Boolean algebra and identities. d. List the truth table for your answer in Part c. e. Draw the logic diagram for the simplified expression in Part c. Simplified expression for the Boolean function defined by the following Kmap

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

1. Simplify the following functional expression using Boolean algebra and its identities. List the identity used at each step F(x,y,z) = x'y + xyz' +xyz 2. Use any method to prove the following...

Please show your work Thank You 6 8a) (6 pts.) Simplify the following functional expression using Boolean algebra and its identities. List the identity used at each step. F(x.2.7) = (x' + y + z')' +...

Total points: 50 (10 points for each question) Using De Morgan's Law, write an expression for the complement of F if F(x, y, z) = xy(x + 2). (2) Use any method to prove the following either true or...

1. Construct a truth table for the following: a. xyz + (xyz)' b. x (yz' + x'y) 2. Using DeMorgan's Law, write an expression for the complement of F if F(x,y,z) = x(y' + z) . 3. Is the following...

answers with solving process 16. Simplify the following functional expressions using Boolean algebra and its identities. List the identity used at each step. a) z (w + x)' + w'xz + wxyz' + wx'yz' b)...

16. Simplify the following functional expressions using Boolean algebra and its identities. List the identity used at each step. a) z (w + x) + wxz + wxyz + wxyz b) y(xz + xz) + z (x + y) c) x(yz +...

2. Construct a truth table for the following: a) xyz + x(yz) + x(y + z) + (xyz) b) (x + y)(x + z)(y + z) 6. Using DeMorgans Law, write an expression for the complement of F if F (x, y, z) = xz(xy +...

answer all three question step by step 5. Simplify the following functional expressions using Boolean algebra and its identities. List the identity used at each step. (3+3) a) F (x, y, z) = (x + y +...

0 0 0 0 1 1 0 + 0 1 1 o + D 1 1 1 0 w the logic magram for the imported express a pare 28. Construct the XOR operator wing only AND, OR, and NOT 37. Find the truth able that describes the following...

can I get answer with solving process 2. Construct a truth table for the following: a) xyz + x(yz)' + x'(y + 2) + (xyz)' b) (x + y)(x' + Z')' + ) 4. Using DeMorgan's Law, write an expression for the...
