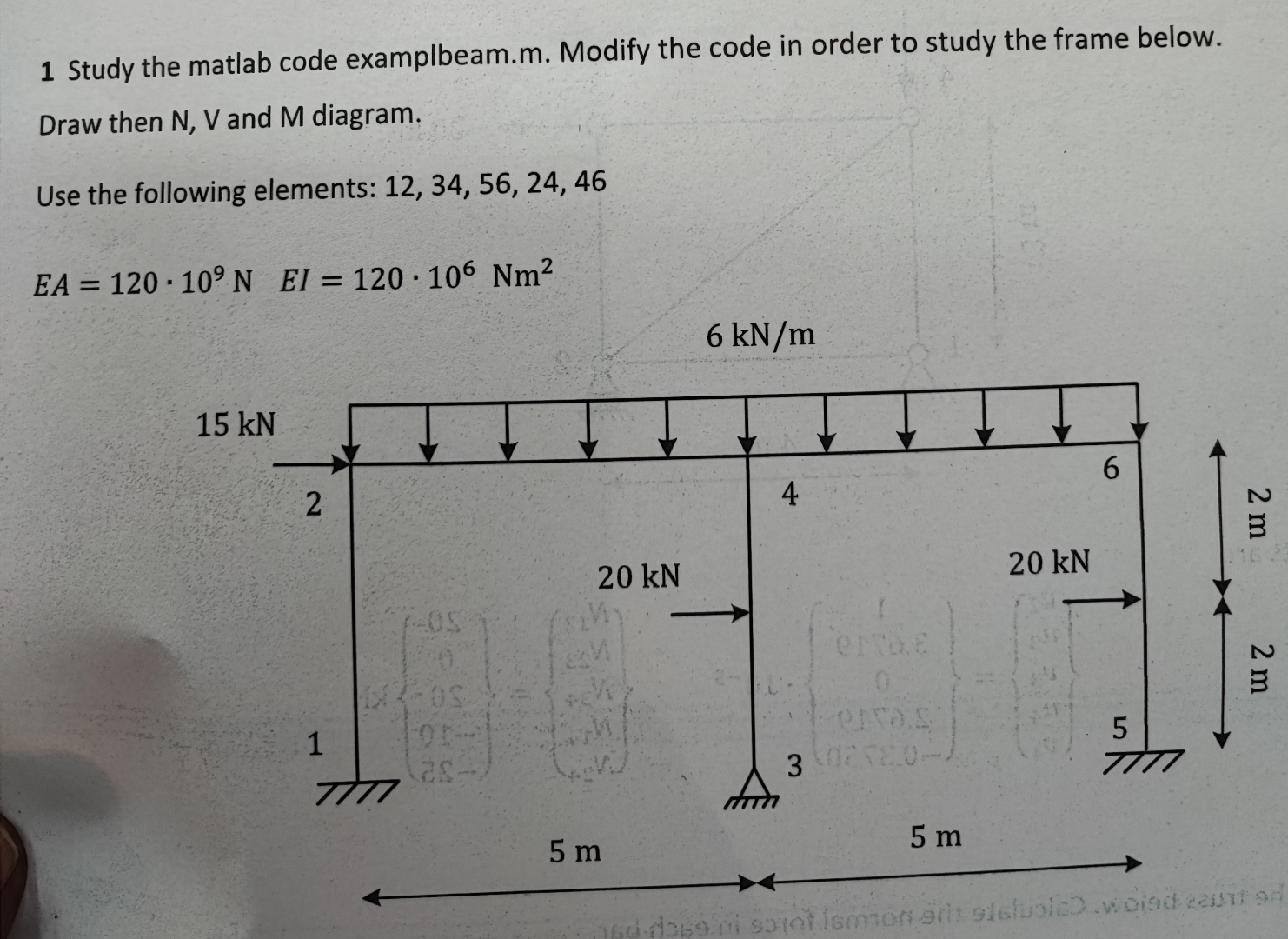

Question: 1 Study the matlab code examplbeam.m . Modify the code in order to study the frame below. Draw then N , V and M diagram.

1 Study the matlab code examplbeam.m. Modify the code in order to study the frame below.
Draw then N, V and M diagram.
Use the following elements: 12,34,56,24,46
EA=120*109N,EI=120*106Nm2,6kNm
1 Study the matlab code examplbeam.m . Modify the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
