Question: 1 ) The beam's cross - section remains the same along x direction, which is a solid rectangle with a width ( mathrm

1)

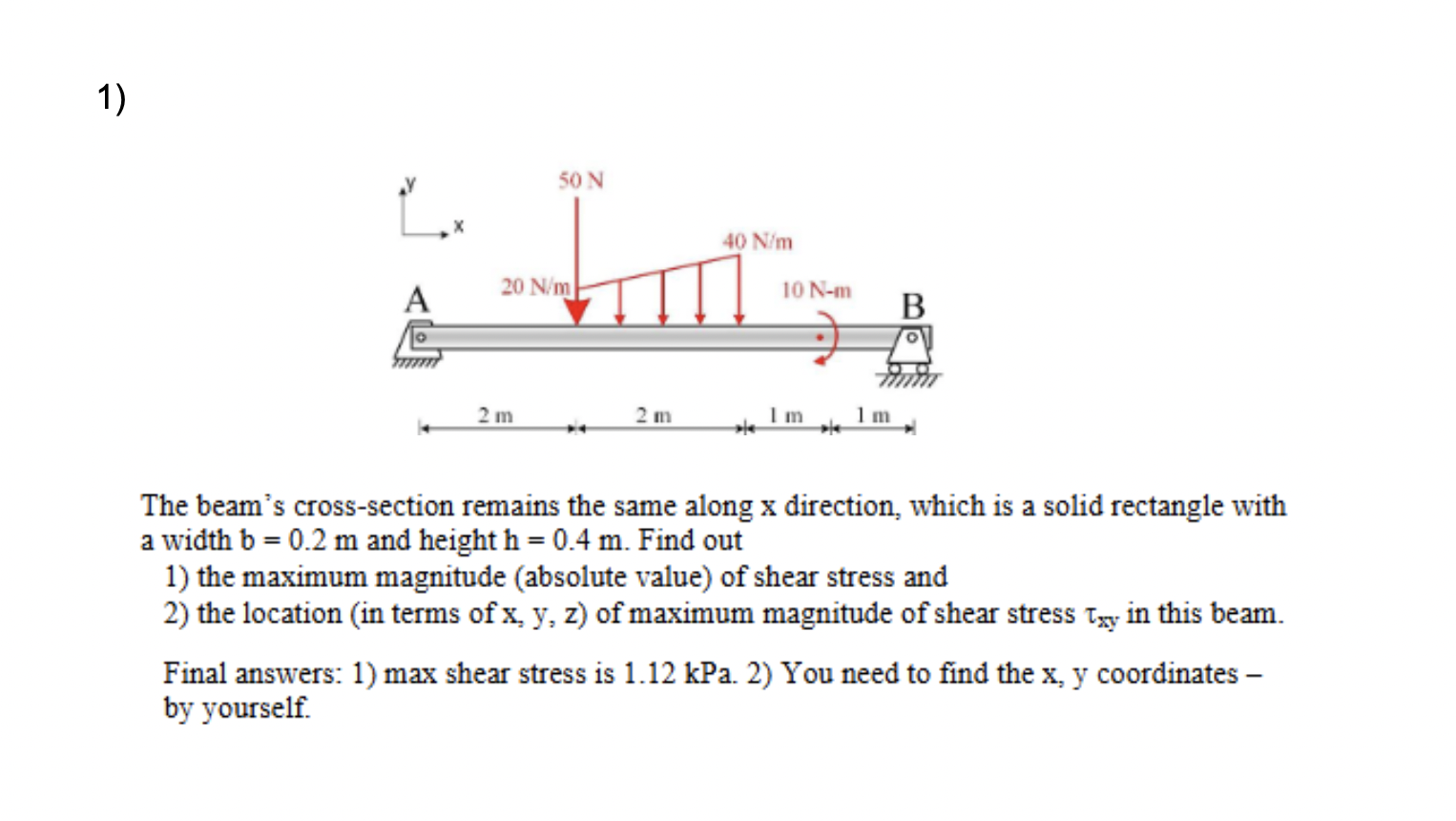

The beam's cross-section remains the same along x direction, which is a solid rectangle with a width \(\mathrm{b}=0.2\mathrm{~m}\) and height \(\mathrm{h}=0.4\mathrm{~m}\). Find out
1) the maximum magnitude (absolute value) of shear stress and
2) the location (in terms of \( x, y, z \)) of maximum magnitude of shear stress \(\tau_{\mathrm{xy}}\) in this beam.
Final answers: 1) max shear stress is 1.12 kPa .2) You need to find the \(\mathrm{x},\mathrm{y}\) coordinates by yourself.
1 ) The beam's cross - section remains the same

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
