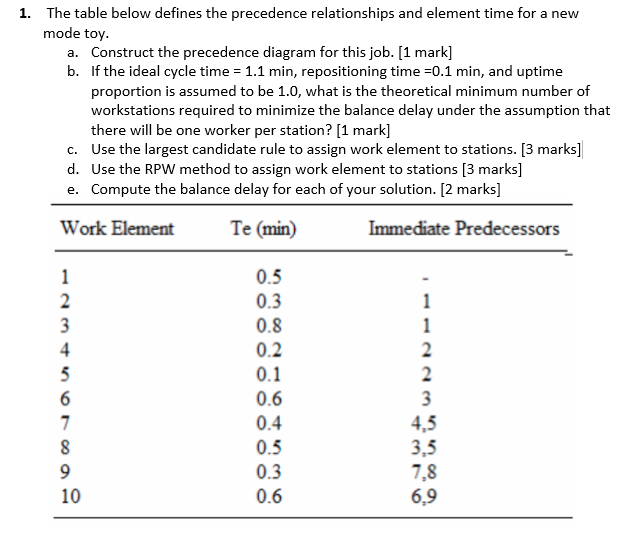

1. The table below defines the precedence relationships and element time for a new mode toy. a. Construct the precedence diagram for this job. [1 mark] b. If the ideal cycle time = 1.1 min, repositioning time =0.1 min, and uptime proportion is assumed to be 1.0, what is the theoretical minimum number of workstations required to minimize the balance delay under the assumption that there will be one worker per station? [1 mark] C. Use the largest candidate rule to assign work element to stations. [3 marks] d. Use the RPW method to assign work element to stations [3 marks] e. Compute the balance delay for each of your solution. [2 marks] Work Element Te (min) Immediate Predecessors 1 1 1 2 2 1 2 3 4 5 6 7 8 9 10 0.5 0.3 0.8 0.2 0.1 0.6 0.4 0.5 0.3 0.6 3 4,5 3,5 7,8 6,9
