Question: ( 1 ) Two single - phase transformers A and B have the same rated voltage ( 2 2 0 / 1 1 0

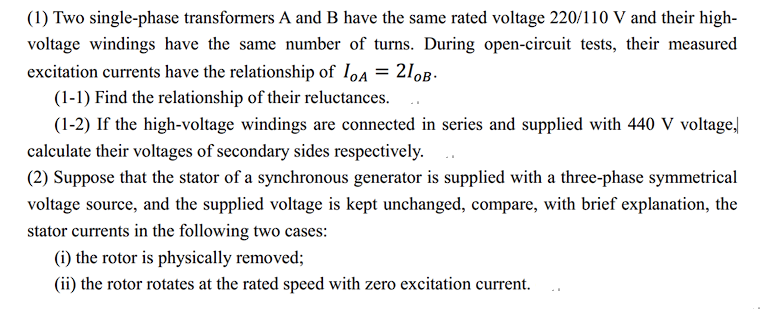

(1) Two single-phase transformers A and B have the same rated voltage \(220/110\mathrm{~V}\) and their highvoltage windings have the same number of turns. During open-circuit tests, their measured excitation currents have the relationship of \( I_{O A}=2 I_{O B}\).
(1-1) Find the relationship of their reluctances.
(1-2) If the high-voltage windings are connected in series and supplied with 440 V voltage, calculate their voltages of secondary sides respectively.
(2) Suppose that the stator of a synchronous generator is supplied with a three-phase symmetrical voltage source, and the supplied voltage is kept unchanged, compare, with brief explanation, the stator currents in the following two cases:
(i) the rotor is physically removed;
(ii) the rotor rotates at the rated speed with zero excitation current.
( 1 ) Two single - phase transformers A and B
