Question: ( 1 ) Using the picture below ( not drawn to scale ) , determine the heat transfer rate through the wall. Dimensions are given

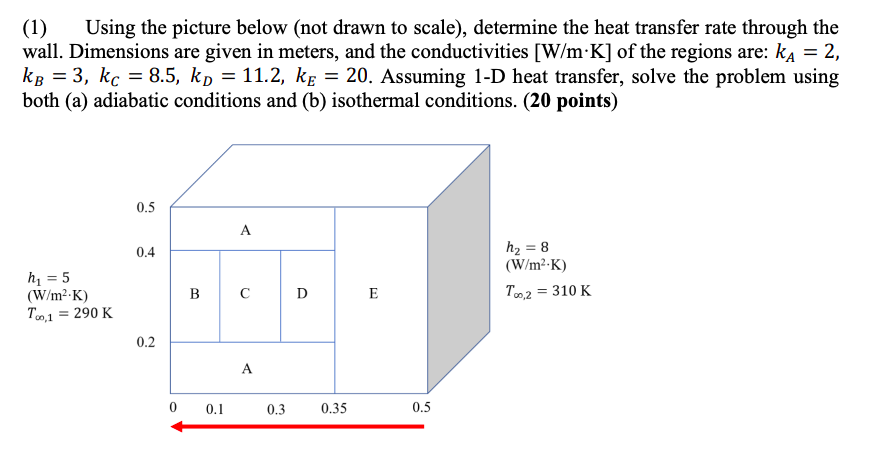

(1) Using the picture below (not drawn to scale), determine the heat transfer rate through the wall. Dimensions are given in picture. Assuming 1-D heat transfer, solve the problem using both (a) adiabatic conditions and (b) isothermal conditions. DOWNVOTE & REPORT IF CHAT GPT!!!
( 1 ) Using the picture below ( not drawn to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
