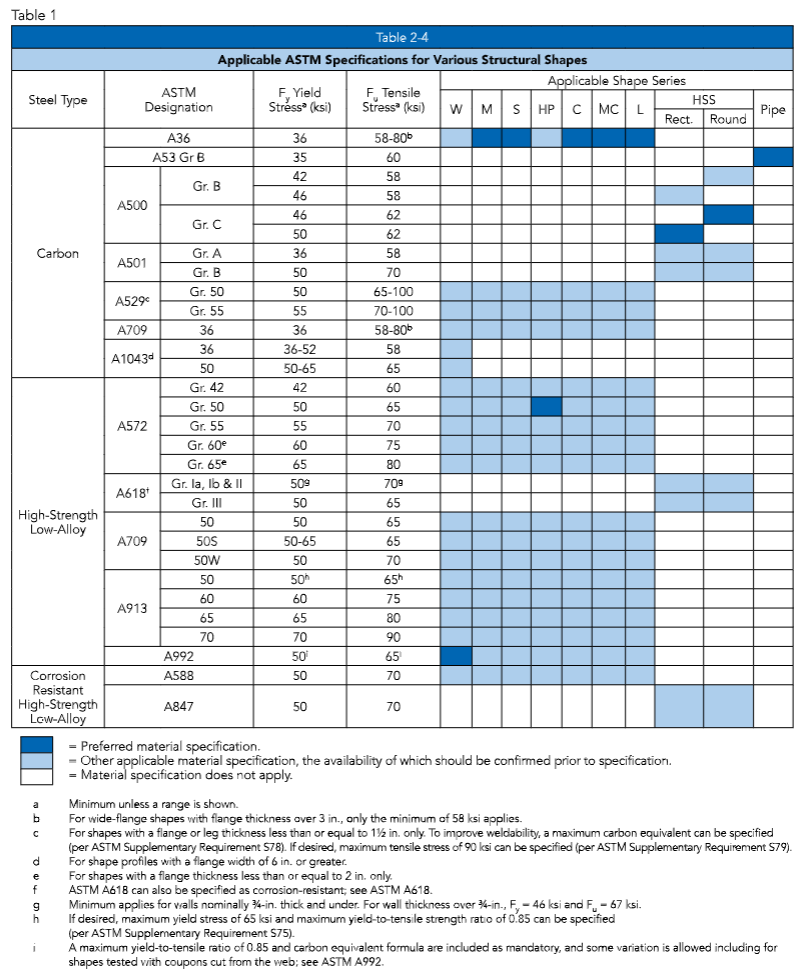

Question: 1 . What is the Yield Stress ( y ) for the A 9 9 2 Steel that you should use?Answer in units of ksi,

1 .

What is the Yield Stress

(

)

for the A

992

Steel that you should use?Answer in units of ksi, with NO decimal place.

2 .

What is the Design Bending Stress for this problem?

Answer in units of ksi, with NO decimal place.

3 .

What is the Design Shear Stress for this problem?

Answer in units of ksi, with NO decimal place.

4 .

What is the maximum Deflection allowed for this problem?

Answer in units of inches, with TWO decimal places.

5 .

What is the minimum required Section Modulus for your beam selection?

Provide your answer in the units of in

3,

with ONE decimal place.

6 .

the W

-

shape is W

18

76 (

i think you have to use this for

7)

7 .

Now that you have selected a W

-

shape, using the beam's properties, what is the maximum bending stress?

Provide the answer in units of ksi, with ONE decimal place.

(

If your answer is incorrect, it may be because you chose the wrong W

-

shape.

)

8 .

Now that you have selected a W

-

shape, using the beam's properties, what is the maximum shear stress?

Provide the answer in units of ksi, with TWO decimal places.

(

If your answer is incorrect, it may be because you chose the wrong W

-

shape.

)

9 .

Now that you have selected a W

-

shape, using the beam's properties, what is the maximum deflection of the beam?

Provide the answer in units of in

,

with TWO decimal places.

Do NOT include the

" - ",

which simply means the deflection is downward, making the sample shape into a "smiley face."

(

If your answer is incorrect, it may be because you chose the wrong W

-

shape.

)

1 . What is the Yield Stress ( y ) for the A 9 9

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
