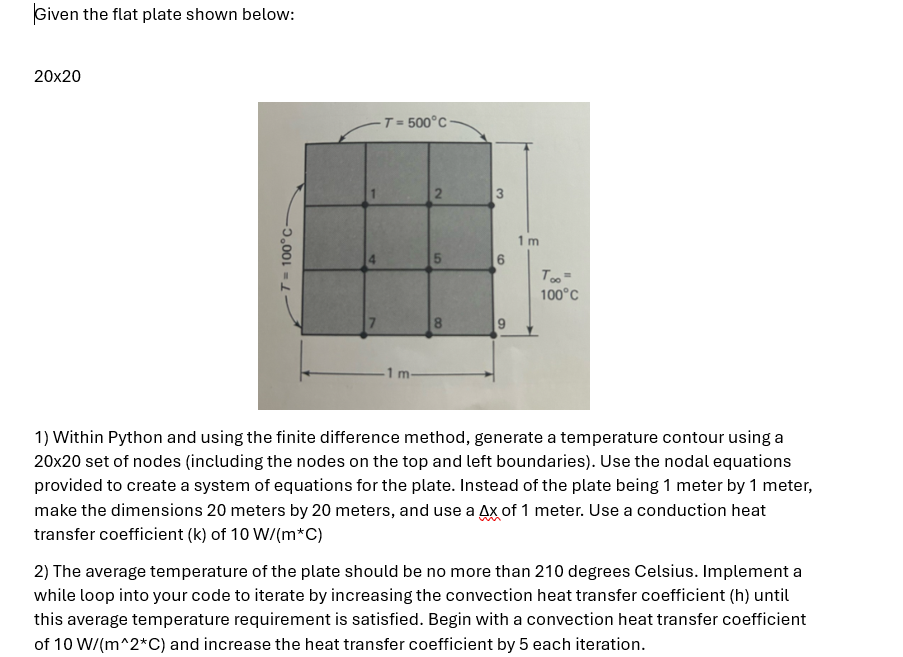

Question: 1 ) Within Python and using the finite difference method, generate a temperature contour using a ( 2 0 times 2 0

1) Within Python and using the finite difference method, generate a temperature contour using a \(20\times 20\) set of nodes (including the nodes on the top and left boundaries). Use the nodal equations provided to create a system of equations for the plate. Instead of the plate being 1 meter by 1 meter, make the dimensions 20 meters by 20 meters, and use a \(\Delta \mathrm{x}\) of 1 meter. Use a conduction heat transfer coefficient (\( k \)) of \(10\mathrm{~W}/\left(\mathrm{m}^{\star}\mathrm{C}\right.\))
2) The average temperature of the plate should be no more than 210 degrees Celsius. Implement a while loop into your code to iterate by increasing the convection heat transfer coefficient (h) until this average temperature requirement is satisfied. Begin with a convection heat transfer coefficient of \(10\mathrm{~W}/\left(\mathrm{m}^{\wedge}2^{\star}\mathrm{C}\right)\) and increase the heat transfer coefficient by 5 each iteration.
1 ) Within Python and using the finite difference
