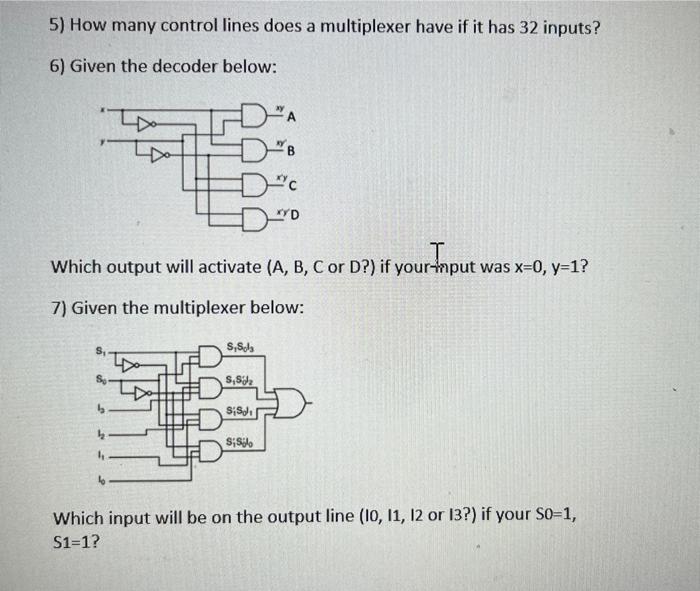

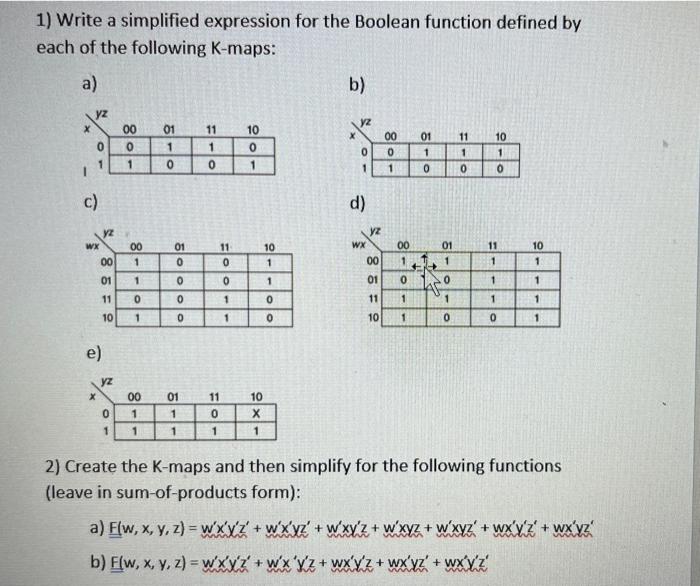

1) Write a simplified expression for the Boolean function defined by each of the following K-maps: a) b) c) d) e) 2) Create the K-maps and then simplify for the following functions (leave in sum-of-products form): a) F(w,x,y,z)=wxxz+wxyz+wxyz+wxyz+wxyz+wxyz+wxyz b) F(w,x,y,z)=wxyz+wxyz+wxyz+wxy+wxyz 5) How many control lines does a multiplexer have if it has 32 inputs? 6) Given the decoder below: Which output will activate (A, B, C or D?) if your-mput was x=0,y=1 ? 7) Given the multiplexer below: Which input will be on the output line (10,11,12 or I3 ?) if your S0=1, S1=1
