Question: 10 2. The activity relationship chart for Walter's machine shop is shown in the figure below. Construct the relationship diagram using the graph-base method. Show

10 2. The activity relationship chart for

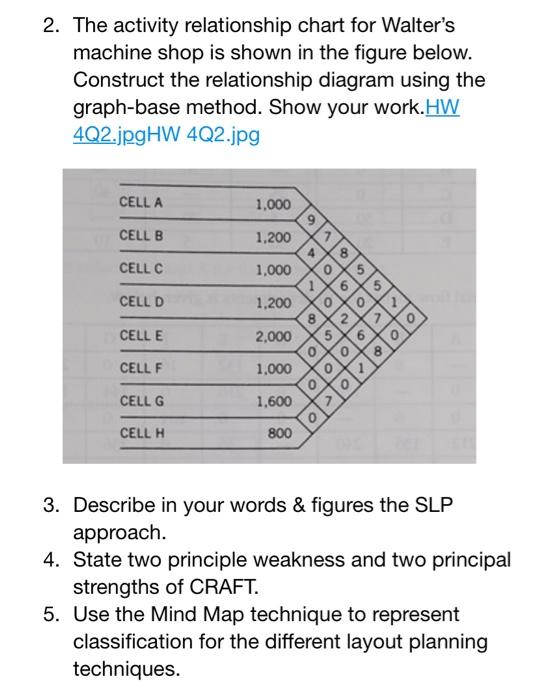

10 2. The activity relationship chart for Walter's machine shop is shown in the figure below. Construct the relationship diagram using the graph-base method. Show your work.HW 4Q2.jpgHW 4Q2.jpg CELLA 1,000 9 CELL B 1,200 7 4 8 CELLC 1,000 0 5 1 6 CELL D 1,200 0 8 2 o CELLE 2,000 5 6 0 0 8 CELL F 1.000 0 0 CELL G 1.600 CELL H 800 3. Describe in your words & figures the SLP approach. 4. State two principle weakness and two principal strengths of CRAFT. 5. Use the Mind Map technique to represent classification for the different layout planning techniques
