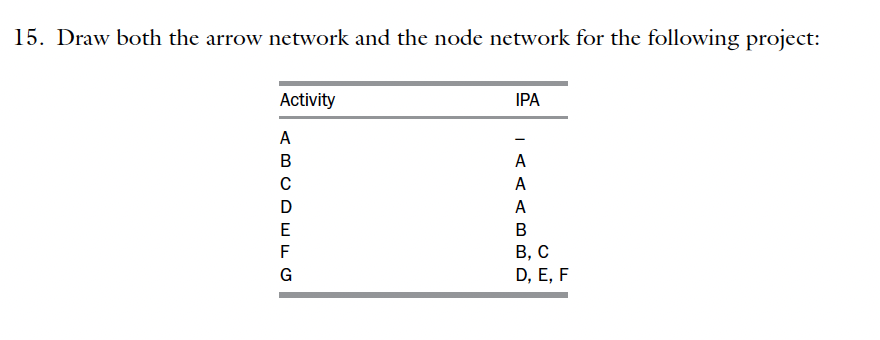

Question: 15. Draw both the arrow network and the node network for the following project: Activity A B C D E EFG G IPA IAAA

15. Draw both the arrow network and the node network for the following project: Activity A B C D E EFG G IPA IAAA

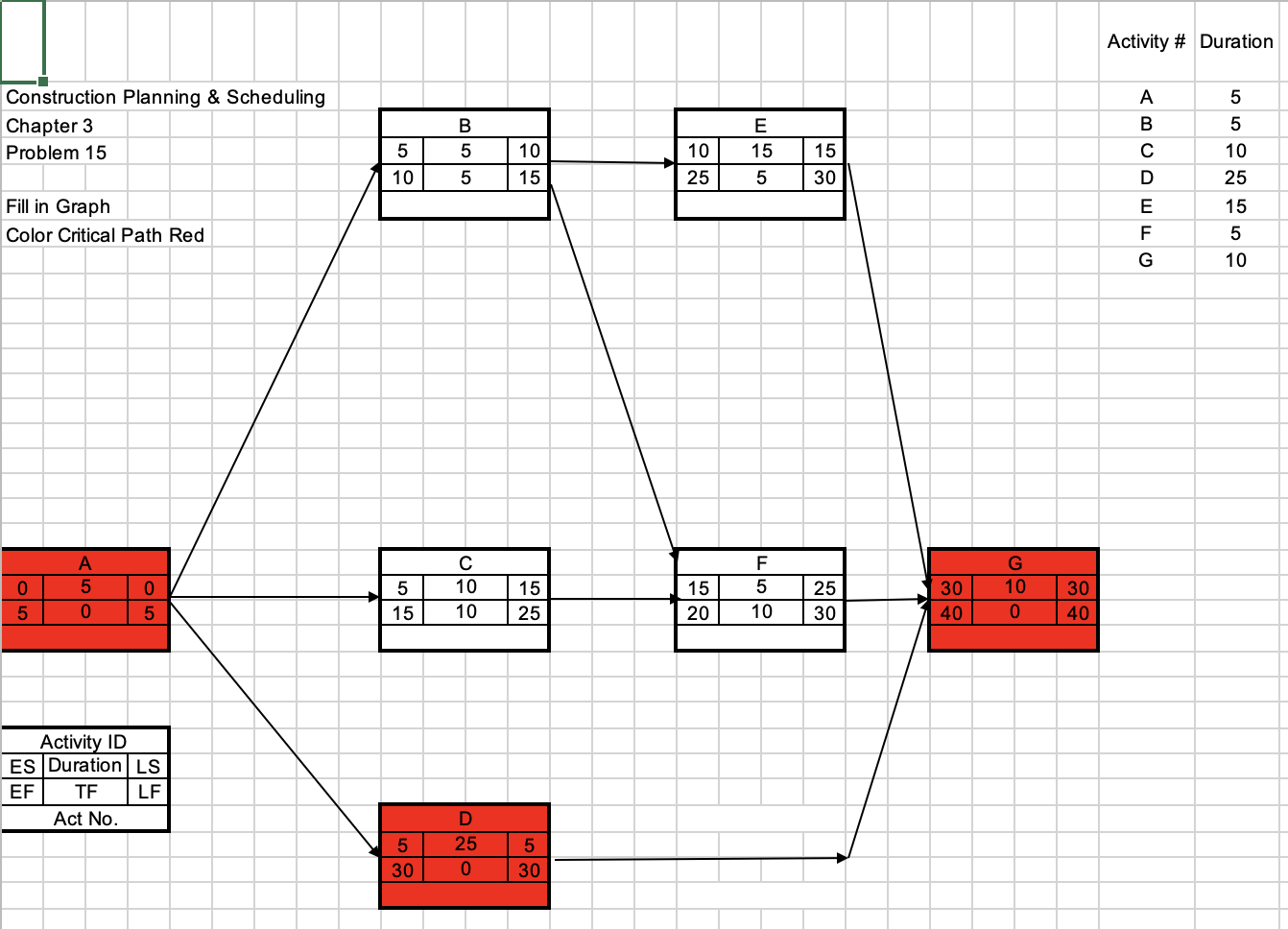

15. Draw both the arrow network and the node network for the following project: Activity A B C D E EFG G IPA IAAA B B, C D, E, F Construction Planning & Scheduling Chapter 3 Problem 15 Fill in Graph Color Critical Path Red 0 5 A 5 0 0 5 Activity ID ES Duration LS EF TF LF Act No. 5 10 B 5 5 C 5 10 15 10 5 30 D 25 0 10 15 15 25 5 30 10 25 15 20 E 15 15 5 30 F 5 10 25 30 G 30 10 40 0 30 40 Activity # Duration ABCDEFG 5 5 10 25 15 5 10
