Question: 1.5 m LE Cable tension = T 2 m Pivot Water is retained in a 1m wide rectangular section channel by a sluice gate

1.5 m LE Cable tension = T 2 m Pivot Water is

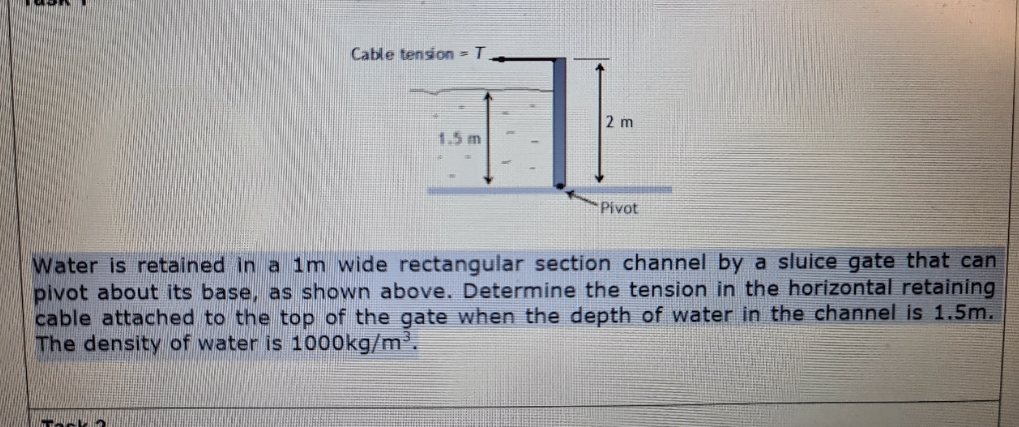

1.5 m LE Cable tension = T 2 m Pivot Water is retained in a 1m wide rectangular section channel by a sluice gate that can pivot about its base, as shown above. Determine the tension in the horizontal retaining cable attached to the top of the gate when the depth of water in the channel is 1.5m. The density of water is 1000kg/m.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
