Question: 2 0 A cylindrical rod ( radius = 5 0 m m ) made of only steel is fixed at point A . There is

20

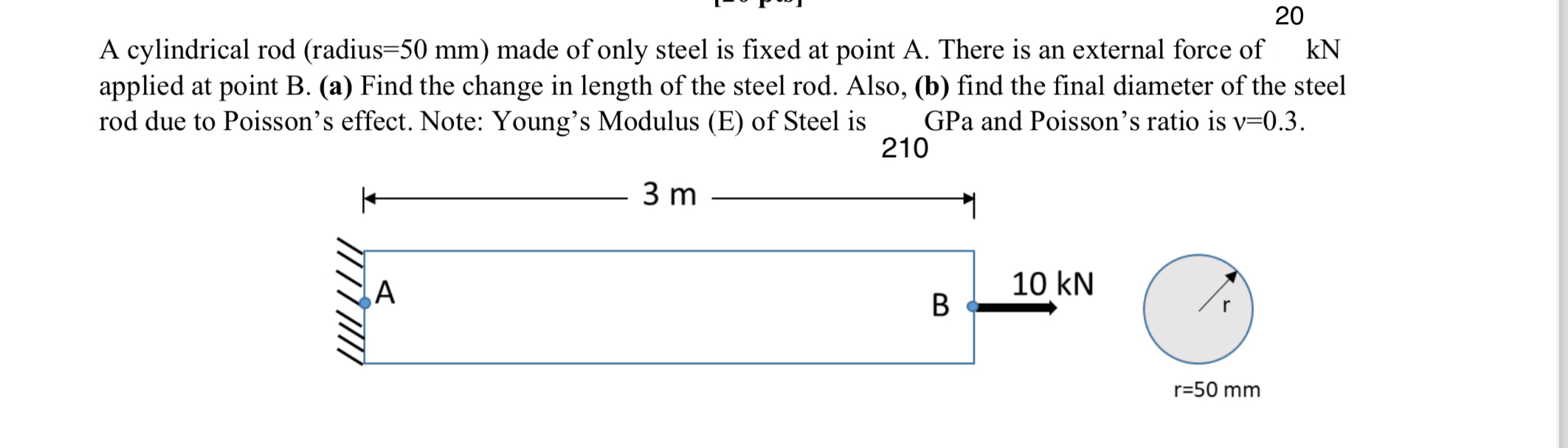

A cylindrical rod (radius =50mm) made of only steel is fixed at point A. There is an external force of kN applied at point B.(a) Find the change in length of the steel rod. Also, (b) find the final diameter of the steel rod due to Poisson's effect. Note: Young's Modulus (E) of Steel is GPa and Poisson's ratio is v=0.3.
210
3mlongrightarrow
2 0 A cylindrical rod ( radius = 5 0 m m ) made

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

A cylindrical rod ( radius = 5 0 mm ) made of only steel is fixed at point A . There is an external force of 1 0 kN applied at point B . ( a ) Find the change in length of the steel rod. Also, ( b )...
