Question: ( 2 0 ' ) An eccentrically compressed column is a rectangular section. The dimensions of the section are b h - 5 0 0

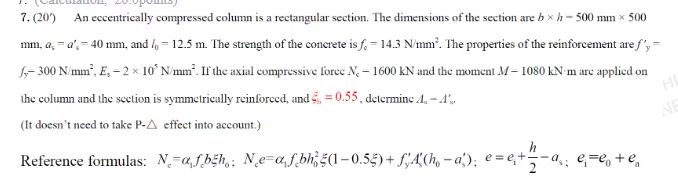

(20') An eccentrically compressed column is a rectangular section. The dimensions of the section are bh-500mm500mm,a5=as'=40mm, and I0=12.5m. The strength of the concrete is fc=14.3Nmm2. The properties of the reinforcement are f'y=fy-300Nmm2,E0-2105Nmm2. If the axial compressive lorec Nc-1600kN and the moment M-1080kN. m are applied on the column and the section is symmetrically reinforeed, and hat()3=0.55, determine Aa-An',
(It doesn't need to take P -???? effect into account.)
Reference formulas: Nc=1fcbh0;,Nce=1fcbh02(1-0.5)+fy'As'(h0-as');e=ei+h2-as;ei=e0+ea
( 2 0 ' ) An eccentrically compressed column is a
