Question: ( 2 0 points ) ( a ) Design an analog lowpass filter with a cut - off frequency of 1 2 r a d

(20 points)

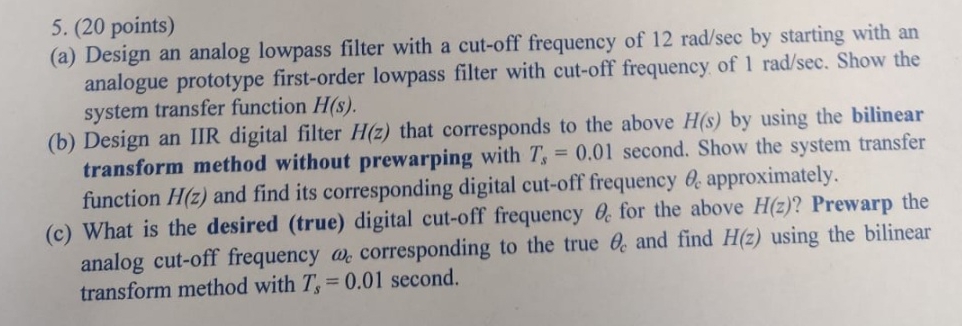

(a) Design an analog lowpass filter with a cut-off frequency of 12radsec by starting with an analogue prototype first-order lowpass filter with cut-off frequency of 1radsec. Show the system transfer function H(s).
(b) Design an IIR digital filter H(z) that corresponds to the above H(s) by using the bilinear transform method without prewarping with Ts=0.01 second. Show the system transfer function H(z) and find its corresponding digital cut-off frequency c approximately.
(c) What is the desired (true) digital cut-off frequency c for the above H(z)? Prewarp the analog cut-off frequency c corresponding to the true c and find H(z) using the bilinear transform method with Ts=0.01 second. please don't use ai
( 2 0 points ) ( a ) Design an analog lowpass

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
