Question: ( 2 0 points ) Consider the circuit below. Assume the switch has been in its initial position for a long time, and it switches

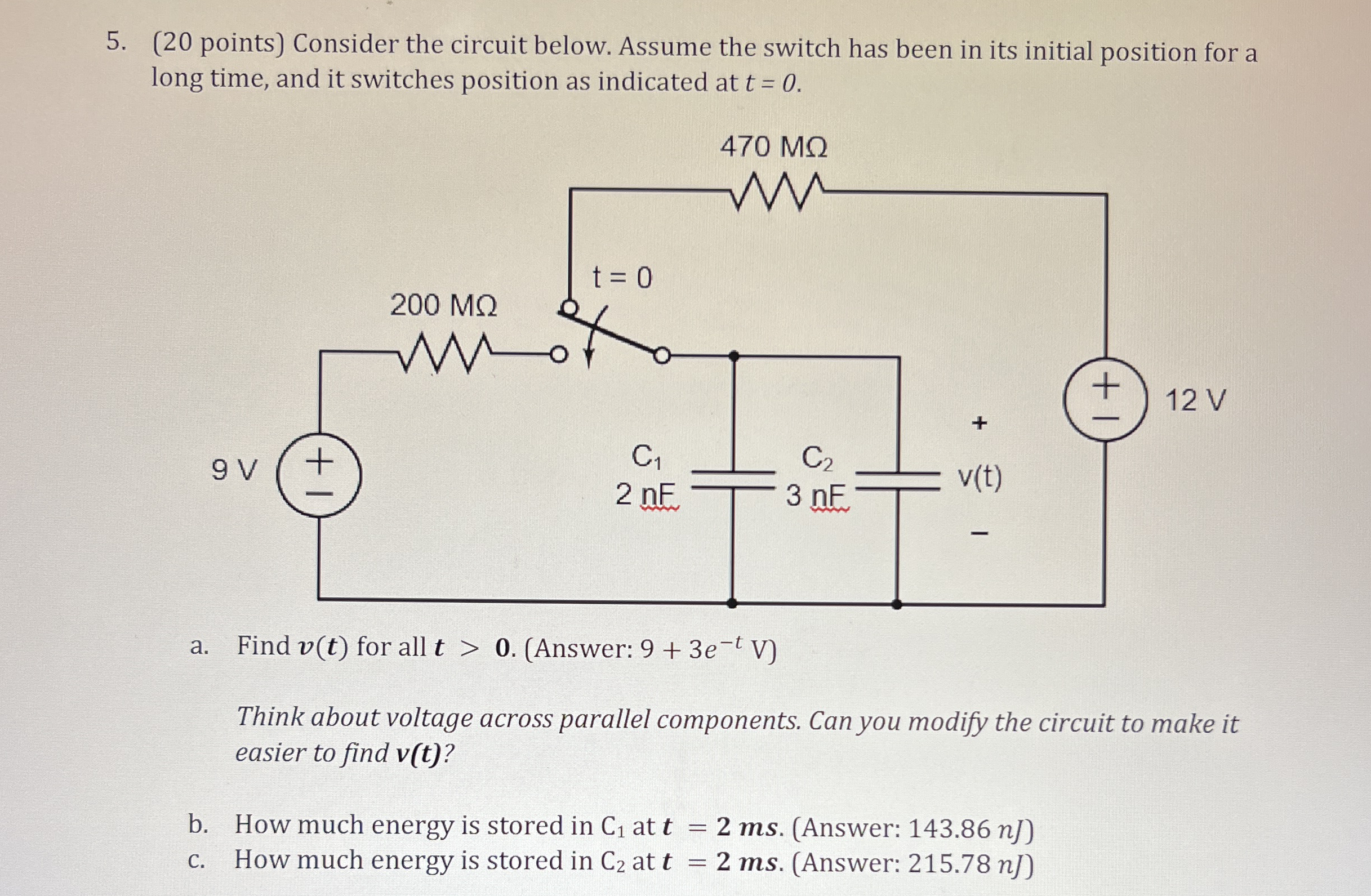

(20 points) Consider the circuit below. Assume the switch has been in its initial position for a long time, and it switches position as indicated at t=0.
Think about voltage across parallel components. Can you modify the circuit to make it easier to find v(t)?
b. How much energy is stored in C1 at t=2ms.(Answer: 143.86 nJ )
c. How much energy is stored in C2 at t=2ms.(Answer: 215.78 nJ )
( 2 0 points ) Consider the circuit below. Assume
