Question: ( 2 0 points ) Consider the first - order analogue lowpass filter in the s - domain: H ( s ) = ( 4

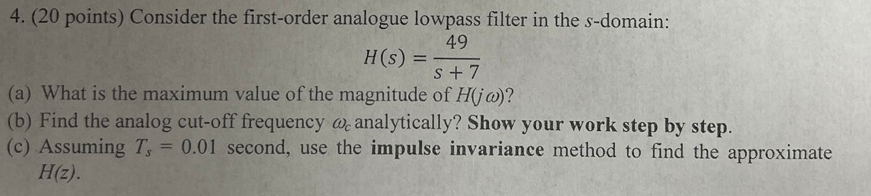

(20 points) Consider the first-order analogue lowpass filter in the s-domain:
H(s)=(49)/(s+7)
(a) What is the maximum value of the magnitude of H(j\omega )?
(b) Find the analog cut-off frequency \omega _(c) analytically? Show your work step by step.
(c) Assuming T_(s)=0.01 second, use the impulse invariance method to find the approximate
H(z).
( 2 0 points ) Consider the first - order
