Question: ( 2 0 points ) In the circuit shown, the voltage between A and B is U A B = 2 4 V and remains

(20 points)

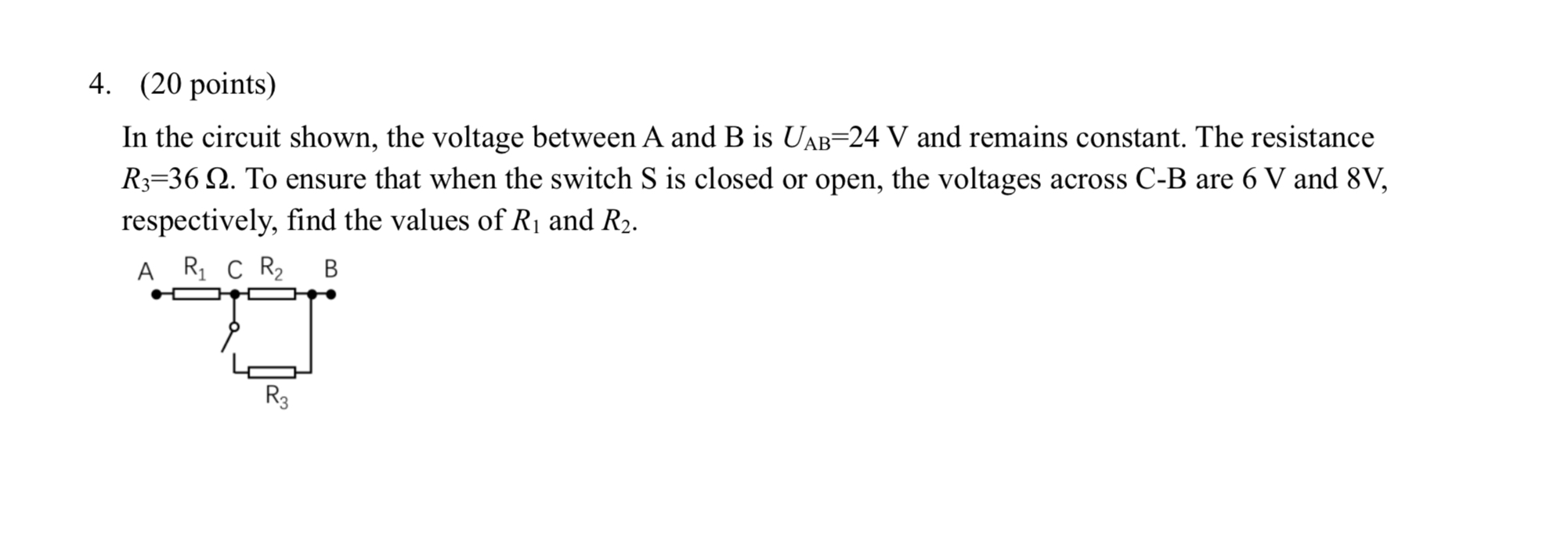

In the circuit shown, the voltage between A and B is UAB=24V and remains constant. The resistance R3=36. To ensure that when the switch S is closed or open, the voltages across C-B are 6 V and 8 V , respectively, find the values of R1 and R2.
