Question: ( 2 0 points ) Write the Boolean function implemented in Canonical Sum - of - Product format and Canonical Product - of - sum

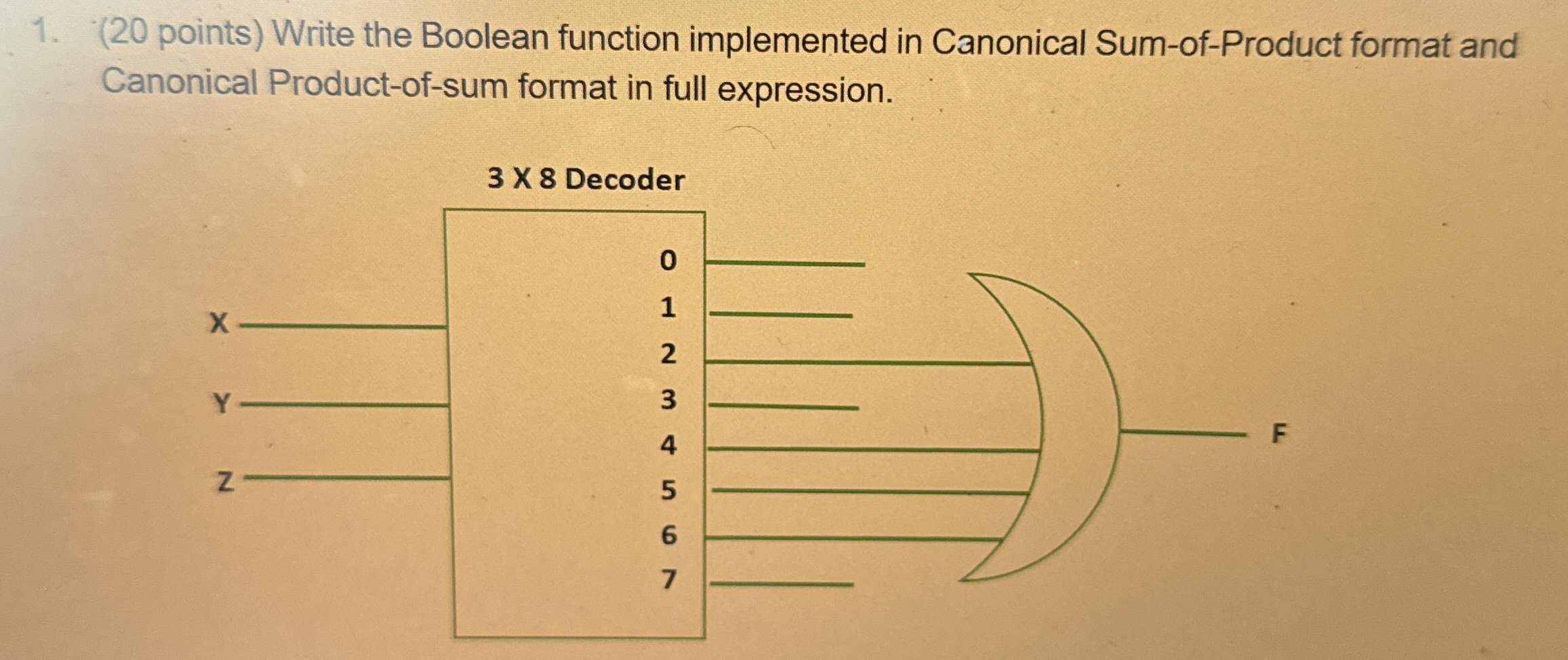

(20 points) Write the Boolean function implemented in Canonical Sum-of-Product format and
Canonical Product-of-sum format in full expression.
( 2 0 points ) Write the Boolean function

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
