Question: ( 2 0 pts ) 4 . In order to measure flow rates for the flow section in Figure 1 , a propeller type current

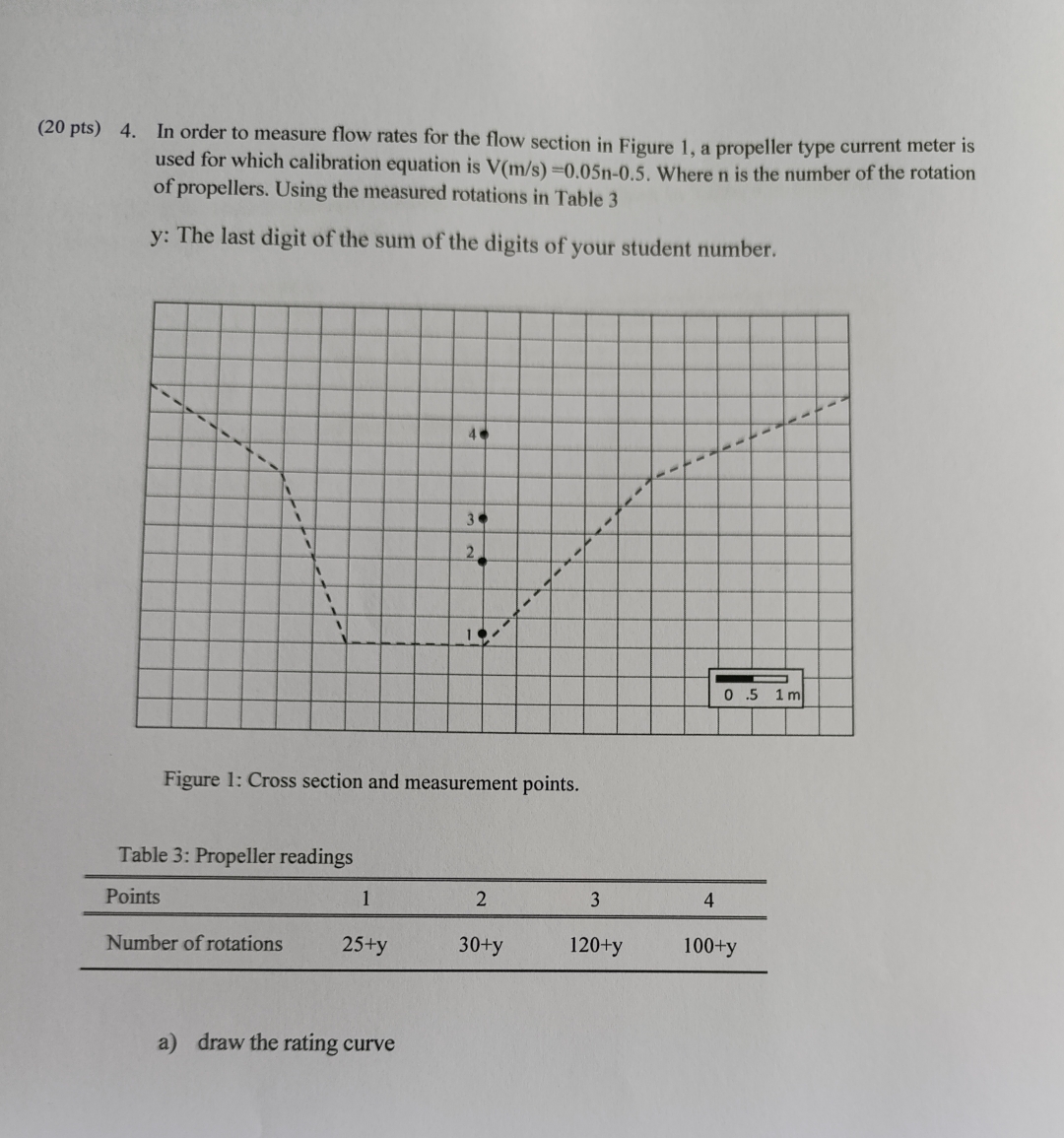

(20 pts)4. In order to measure flow rates for the flow section in Figure 1, a propeller type current meter is used for which calibration equation is V(ms)=0.05n-0.5. Where n is the number of the rotation of propellers. Using the measured rotations in Table 3
y : The last digit of the sum of the digits of your student number.
Figure 1: Cross section and measurement points.
Table 3: Propeller readings
\table[[Points,1,2,3,4],[Number of rotations,25+y,30+y,120+y,100+y
y=4
( 2 0 pts ) 4 . In order to measure flow rates
