Question: ( 2 0 pts ) Determine a generic expression for the magnitude of charge per unit length ( C m ) on a very long

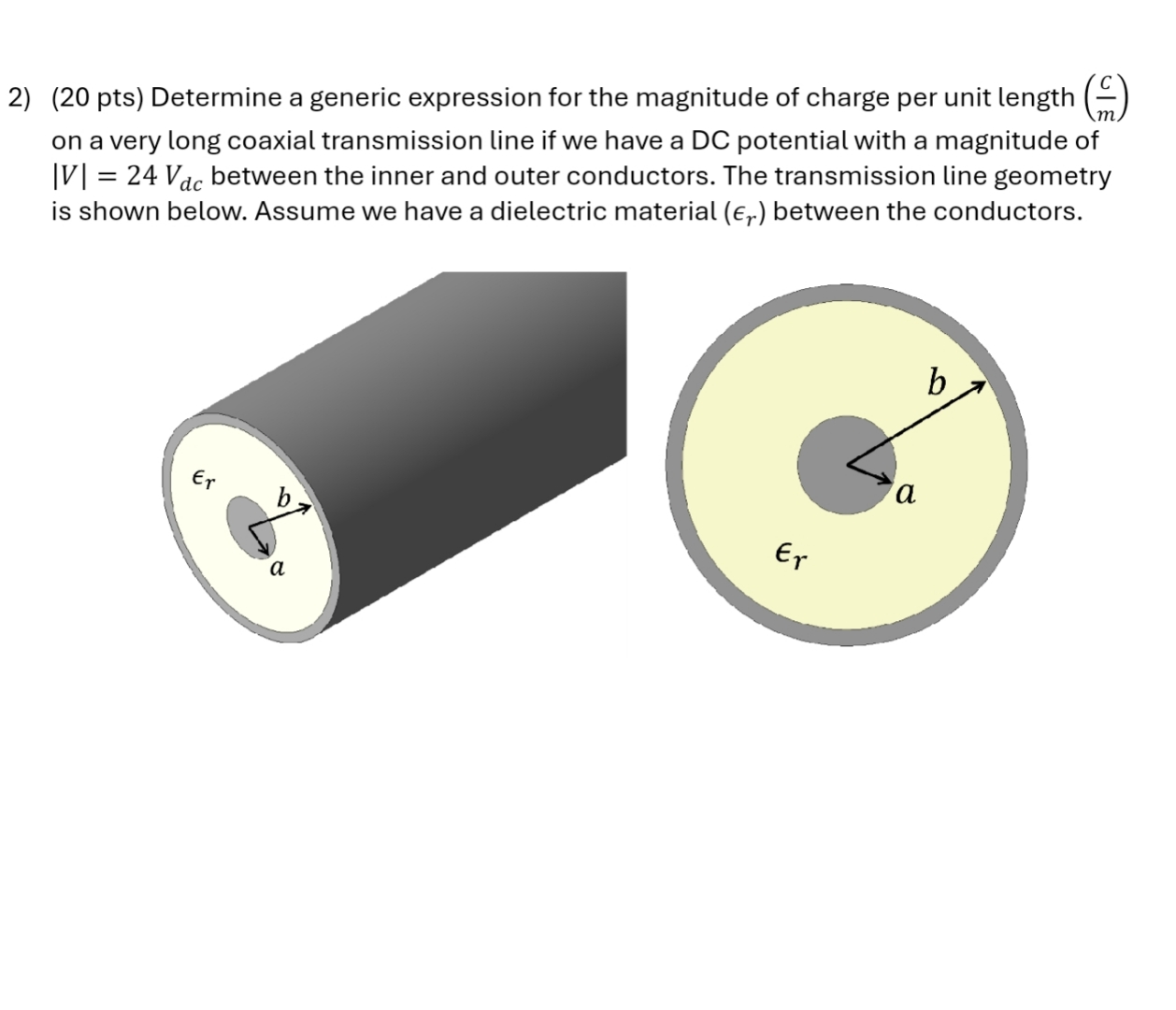

(20 pts) Determine a generic expression for the magnitude of charge per unit length (Cm) on a very long coaxial transmission line if we have a DC potential with a magnitude of |V|=24Vdc between the inner and outer conductors. The transmission line geometry is shown below. Assume we have a dielectric material (lonr) between the conductors.
( 2 0 pts ) Determine a generic expression for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
