Question: ( 2 0 pts ) The part shown below is to be made through injection molding. All units are in inch. ( a ) Please

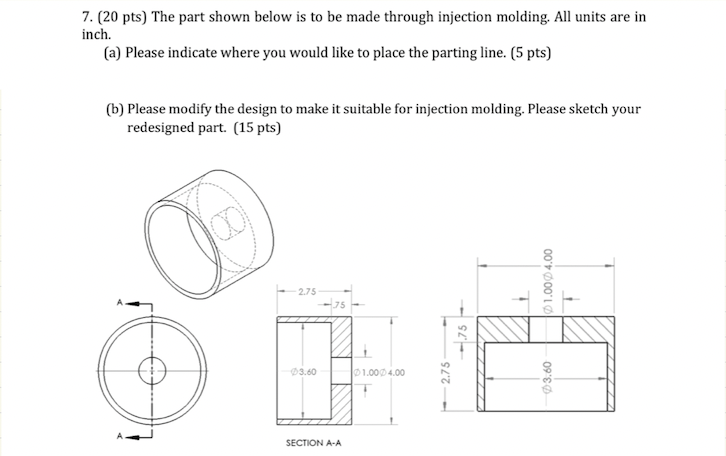

(20 pts) The part shown below is to be made through injection molding. All units are in inch.
(a) Please indicate where you would like to place the parting line. (5 pts)
(b) Please modify the design to make it suitable for injection molding. Please sketch your
redesigned part. (15 pts)
( 2 0 pts ) The part shown below is to be made

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
