Question: ( 2 0 ' ) The circuit has reached steady state for t 0 s . If the switch moves to position B at t

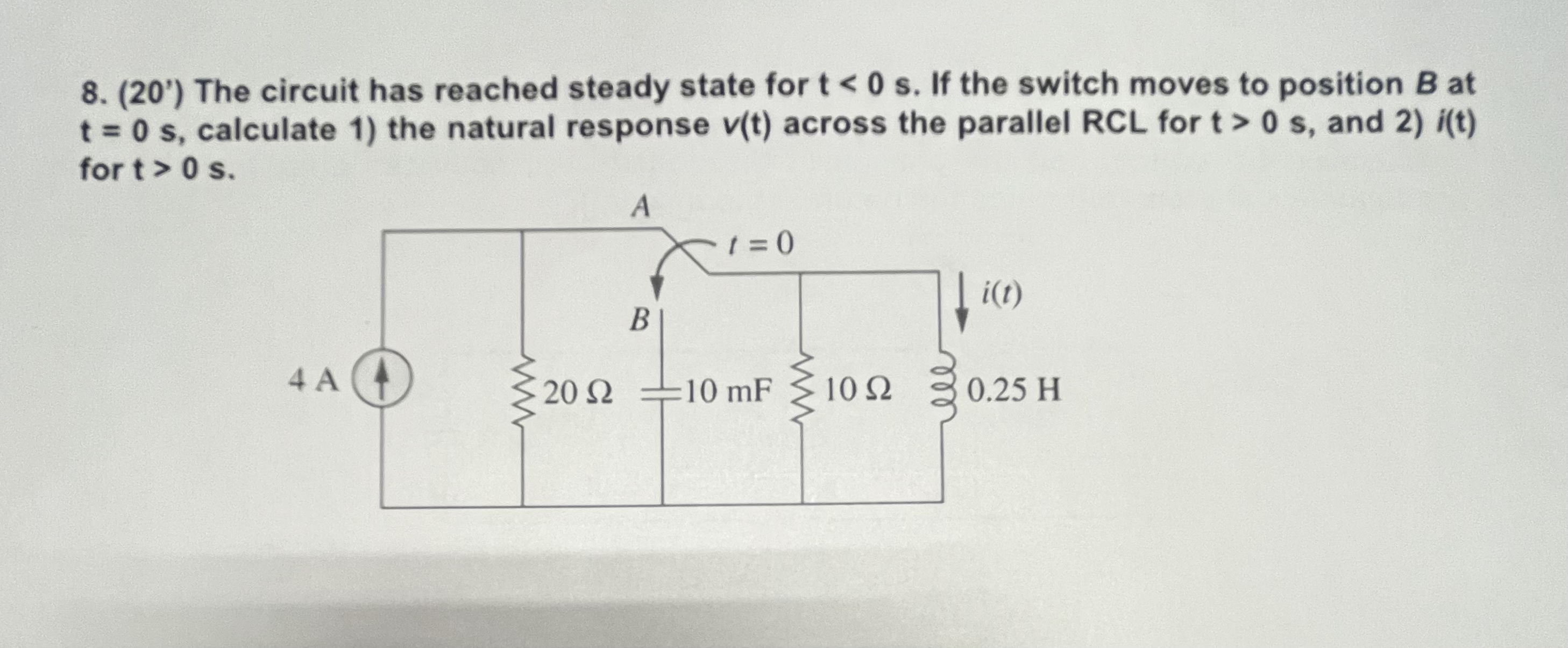

(20') The circuit has reached steady state for t0s. If the switch moves to position B at t=0s, calculate 1) the natural response v(t) across the parallel RCL for t>0s, and 2
( 2 0 ' ) The circuit has reached steady state

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
