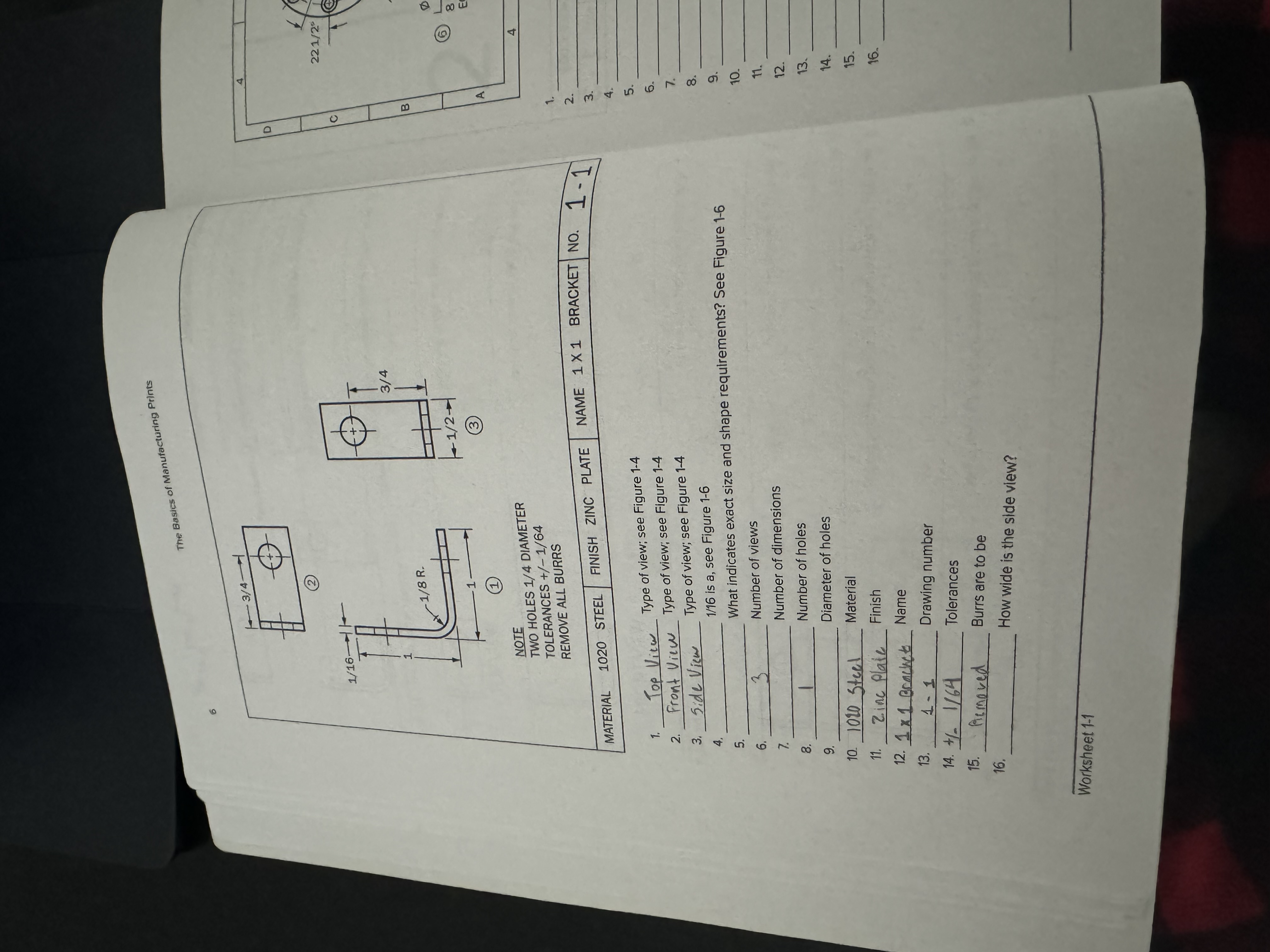

$(2)$

$(1)$

$(3)$

TWO HOLES $\frac{1}{4}$ DIAMETER

NOTE

TOLERANCES $\frac{+}{-}\frac{1}{64}$

REMOVE ALL BURRS

$\backslash$table$[[$MATERIAL $1020,$STEEL,FINISH ZINC PLATE,NAME $1\backslash$times $1$ BRACKET,NO$.1-1]]$

Top Vitw Type of view; see Figure $1-4$

Front View Type of view; see Figure $1-4$

Side View Type of view; see Figure $1-4$

$\frac{1}{16}$ is a$,$ see Figure $1-6$

What indicates exact size and shape requirements? See Figure $1-6$

Number of views

Number of dimensions

Number of holes

Diameter of holes

Material

Finish

Name

Drawing number

Tolerances

Aismoved

Burrs are to be

How wide is the side view?
