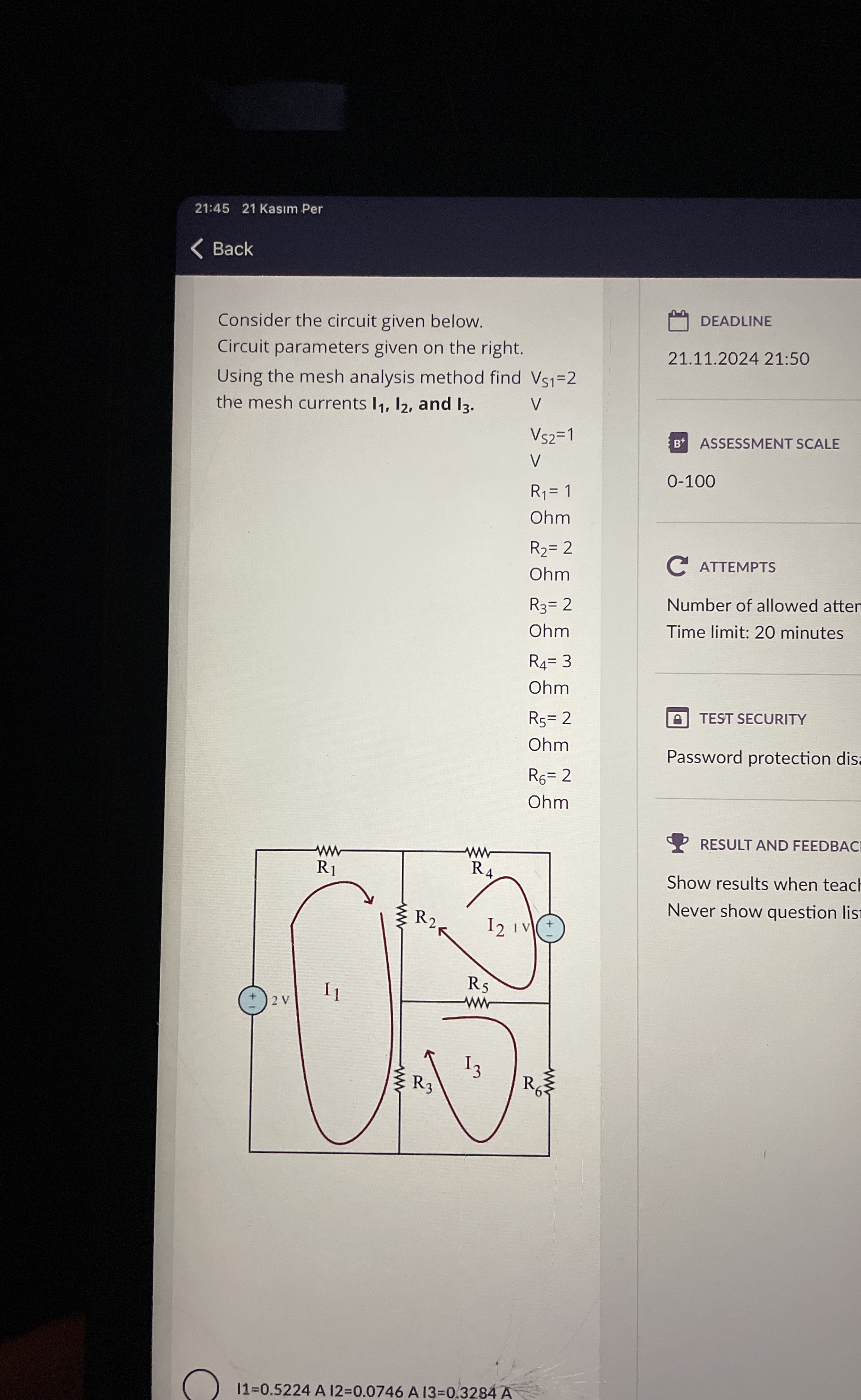

Consider the circuit given below.

Circuit parameters given on the right.

Using the mesh analysis method find $V_{S1}=2$ the mesh currents $I_1,I_2,$ and $I_3.V$

$V_{S2}=1$

V

$R_1=1$

Ohm

$R_2=2$

Ohm

$R_3=2$

Ohm

$R_4=3$

Ohm

$R_5=2$

Ohm

$R_6=2$

Ohm

DEADLINE

$21\mathrm{.}11\mathrm{.}202421$:$50$

$B^{+}$

ASSESSMENT SCALE

$0-100$

C

ATTEMPTS

Number of allowed atter

Time limit: $20$ minutes

TEST SECURITY

Password protection dis

RESULT AND FEEDBAC

Show results when teacl

Never show question lis

$I1=0\mathrm{.}5224$ A $|2||=0\mathrm{.}0746$ A $|3||=0\mathrm{.}3284A$
