Question: 2 - 1 6 . Resolve Fi into components along the a and v axes and determine the magnitudes of these components. - 2 -

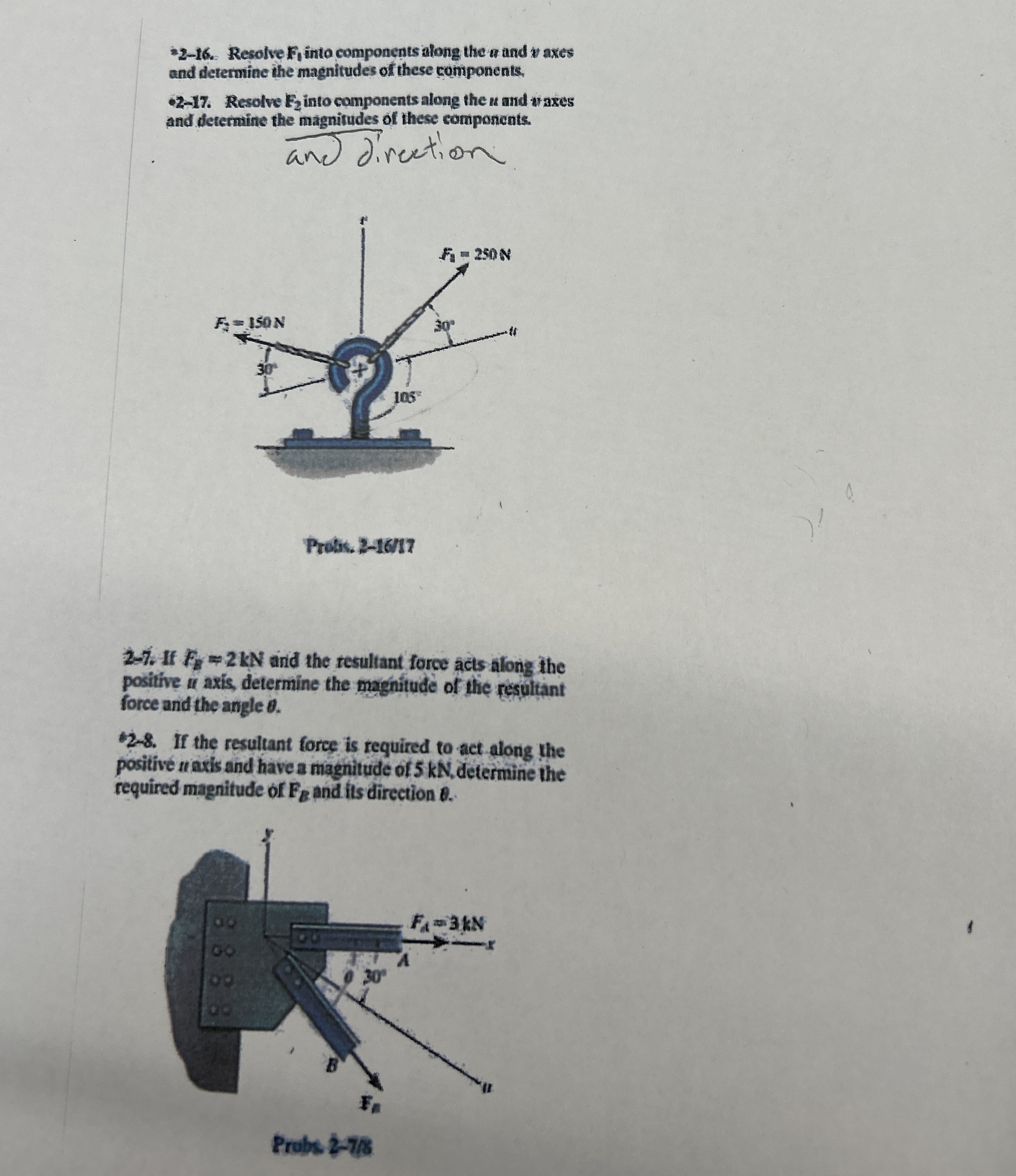

2-16. Resolve Fi into components along the a and v axes and determine the magnitudes of these components.
-2-17. Resolve F2 into components along the u and w axes and determine the magnitudes of these components.
and Jirection
20. If fB=2kN and the resultant force acts along the positive of axis, determine the magnitude of the resultant force and the angle .
2-8. If the resultant force is required to act along the positive #Iaxis and have a magnitude of 5 kN , determine the required magnitude of FB and its direction .
2 - 1 6 . Resolve Fi into components along the a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

- 2 - 5 . Resolve F 1 into components along the u and v axes, and determine the magnitudes of these components. 2 - 6 . Resolve F 2 into components along the u and v axes, and determine the...

Q:

* 2 - 1 6 . Resolve \ ( \ mathbf { F } _ { 1 } \ ) into components along the \ ( u \ ) and \ ( v \ ) axes and determine the magnitudes of these components. - 2 - 1 7 . Resolve \ ( \ mathbf { F } _ {...

Q:

Part A Resolve F 1 into components along the u and v axes and determine the magnitudes of these components. ( Figure 1 ) Express your answers using three significant figures separated by a comma.

Q:

2 - 1 6 . Resolve Fi inta components atong the a and y axes and determine the magnitudes of these components. 2 - 1 7 . Resolve E 2 into components along the u and v axes and deternine the magnitudes...

Q:

code class="asciimath">2-6. Determine the magnitude of the resultant force F_(R)=F_(1)+F_(2) and its direction, measured clockwise from the positive u axis. 2-7. Resolve the force F_(1) into...

Q:

stow Au F . B . D + Forces 2 - 1 6 . Resolve Fi into components along the and y axes and detemine the magnitudes of these components. 2 - 1 7 . Resolve E 2 into components along the u and vaxes and...

Q:

1- Determine the magnitudes of the two components of F along members AB and AC. Set F=500 N 2- Resolve the force F2 into components along the u and v axes and determine the magnitudes of the...

Q:

Force Vectors Note: All the figures are not drawn to scale unless mentioned otherwise. Problem 2 . 1 : For the system shown in Fig. 1 : a ) Calculate the magnitude of the resultant force and its...

Q:

Problem 1 : Resolve the force F 2 into components along the u and v axes using law of sines and law of cosines and determine the magnitudes of the components.

Q:

2 7 . Resolve the force F 1 into components along the u and v axes and determine the magnitudes of the components.
