Question: 2 ( 2 0 ) . Calculate the minimum lateral force P supporting the retaining in the following figure using Rankine's theory. Assume: Internal friction

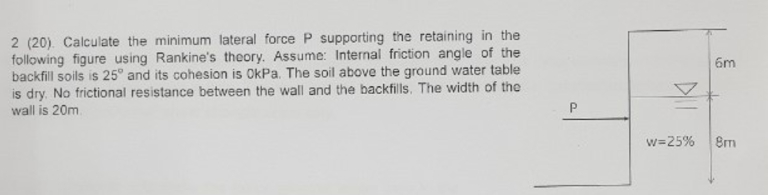

2(20). Calculate the minimum lateral force P supporting the retaining in the following figure using Rankine's theory. Assume: Internal friction angle of the backfill soils is 25^(@) and its cohesion is 0 kPa . The soil above the ground water table is dry. No frictional resistance between the wall and the backfills. The width of the wall is 20 m . Gs is 2.7 and Rw is 10Kn/m^3
2 ( 2 0 ) . Calculate the minimum lateral force P
